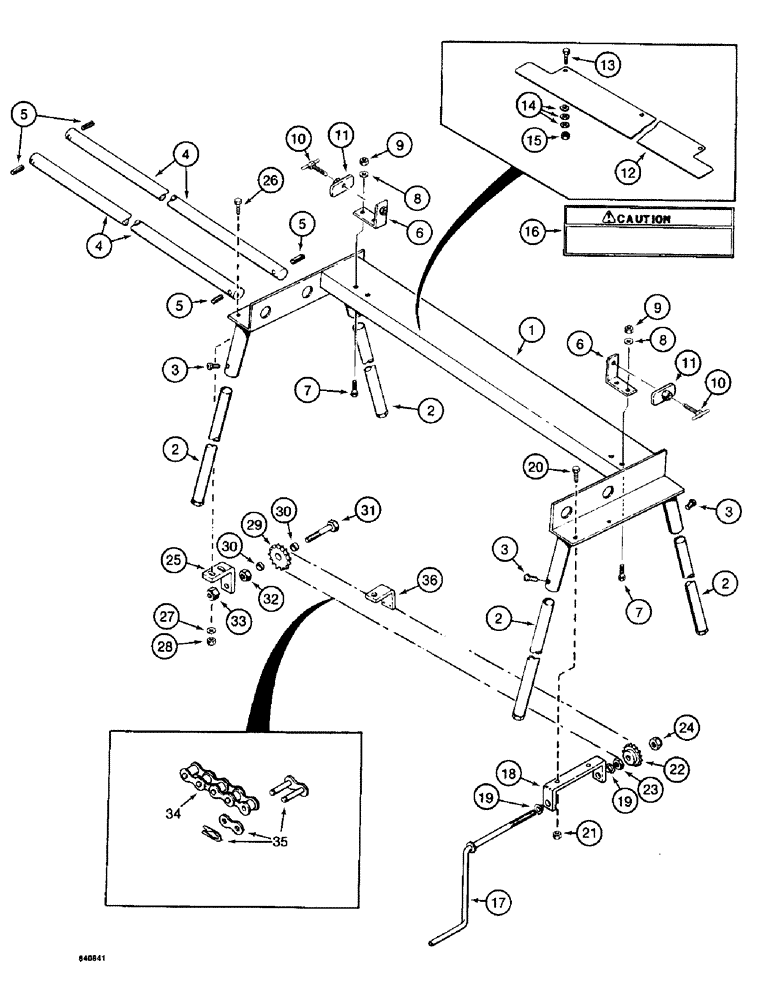

Запчасти Case 1187 (334) - TOOL GRINDER STAND (05) - UPPERSTRUCTURE CHASSIS

1

S510261

FRAME ASSY

FRAME - tool grinder

1шт.

2

S229422

PIPE

LEG - grinder frame, adjustable

4шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

4

S105951

SHAFT

- tool grinder bracket

2шт.

5

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

4шт.

6

S229424

BRACKET - support, cutter bar

2шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

10

S237643

BOLT (MACHINE)

BOLT - special, cutter bar

2шт.

11

S237131

NUT

LOCK - cutter bar bolt

2шт.

12

S237080

PLATE ASSY.

COVER - grinder frame

1шт.

13

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3шт.

14

195-103

WASHER,5/16"

- flat, 3/8"

1шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

16

321-5281

DECAL

- caution, sharpening cutter

1шт.

17

S237050

CRANK

- table chain

1шт.

18

S237029

BRACKET

- support, crank

1шт.

19

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

BUSHING - bracket

2шт.

20

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

21

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

22

S115002

DRIVE SPROCKET

SPROCKET - chain, at crank end

1шт.

23

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

24

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

25

S114965

BRACKET

- support, sprocket

1шт.

26

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

2шт.

27

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, hardened, 3/8"

2шт.

28

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

29

S237947

DRIVE SPROCKET

SPROCKET ASSEMBLY - chain, Includes: Ref. 30

1шт.

30

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

BUSHING - sprocket

2шт.

31

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

32

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

33

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

34

S115015

CHAIN

- grinder table

1шт.

35

S103144

LINK

- chain, master

2шт.

36

S115011

ANGLE

- table chain to grinder bracket, see Figure 336 for brackets and clamping parts

1шт.
