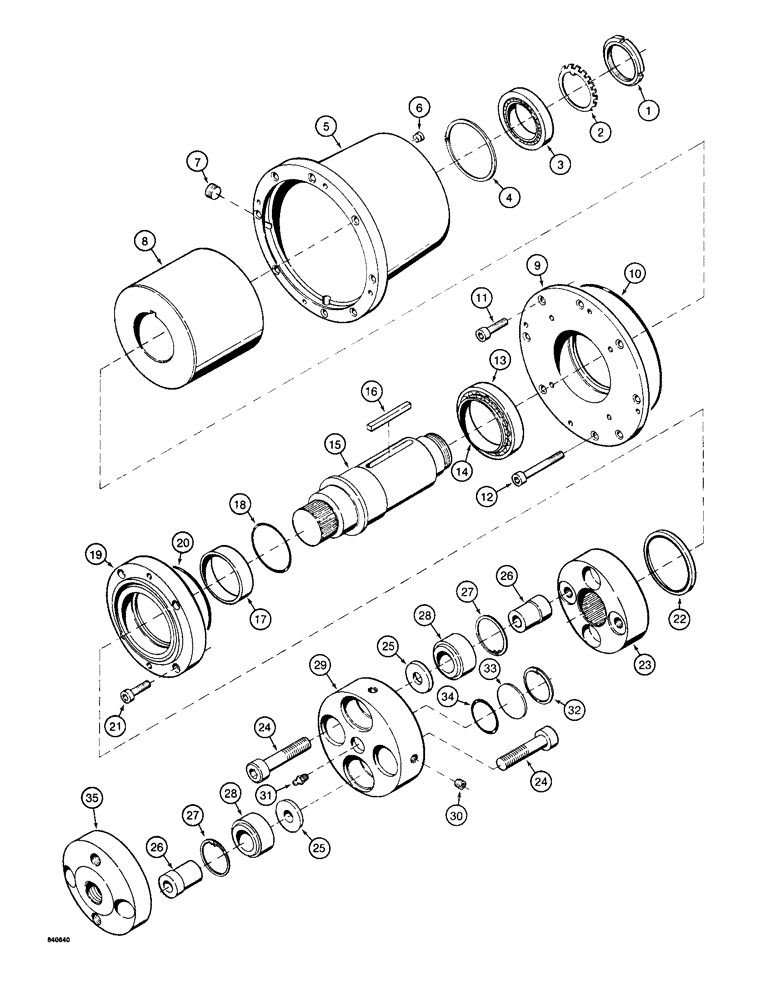

Запчасти Case 1187 (332) - ROTARY CUTTER, CUTTER DRIVE PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S105665

NUT - locking, bearing

1шт.

2

S105666

WASHER - bearing lock

1шт.

3

S65026

BEARING ASSY

ROLLER BEARING - shaft, flywheel end

1шт.

4

S105629

RING, SNAP

SNAP RING -, Serial Range: flywheel-shaft

1шт.

5

S609676

HOUSING ASSY.

HOUSING - flywheel

1шт.

6

S222087

BREATHER

VENT - air, flywheel housing

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex socket head, 1/2" NPT

2шт.

8

S609707

FLYWHEEL

- rotary cutter

1шт.

9

S609703

ADAPTER

- cutter, Serial Range: drive-frame

1шт.

10

S5870

O-RING,11.484" ID x 11.762" OD x 0.139"

- adapter to housing

1шт.

11

61-824

HEX SOC SCREW,1/2"-13 x 1 1/2"

CAP SCREW - hex socket head, 1/2" - 13 NC x 1-1/2"

4шт.

12

61-840

HEX SOC SCREW,1/2"-13 x 2 1/2"

CAP SCREW - hex socket head, 1/2" - 13 NC x 2-1/2"

8шт.

13

S75385

CUP

- bearing, at adapter

1шт.

14

S75384

ROLLER BEARING

CONE - bearing, at adapter

1шт.

15

S610500

SHAFT

- cutter drive

1шт.

16

S106636

KEY - shaft to flywheel, 1/2" square x 4" long

1шт.

17

S230016

BUSHING

- shaft, at seal

1шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- bushing, at shaft

1шт.

19

S609786

RETAINER - shaft seal

1шт.

20

G102868

O-RING,6.984" ID x 7.262" OD

- retainer to adapter

1шт.

21

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

CAP SCREW - hex socket head, 1/2" - 13 NC x 1-1/4"

4шт.

22

S109783

OIL SEAL

SEAL - oil, at drive shaft

1шт.

23

S610501

COUPLING -, Serial Range: cutter-shaft

1шт.

24

61-1664

SCREW,Hex Soc Hd, 1"-8 x 4"

CAP SCREW - hex socket head, 1" - 8 NC x 4"

4шт.

25

S106634

WASHER

- special, tapered

4шт.

26

S230015

BUSHING

-, Serial Range: bolt-bearing

4шт.

27

S105672

RING, SNAP

SNAP RING -, Serial Range: bearing-housing

4шт.

28

S229376

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - self-aligning

4шт.

29

S609788

ADAPTER

HOUSING - bearing

1шт.

30

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex socket head, 1/2" NPT

4шт.

31

219-23

LUBE NIPPLE,1/4" - 18 NPTF

GREASE FITTING - straight, 1/4" NPT

1шт.

32

S105671

RING, SNAP

SNAP RING -, Serial Range: plug-housing

1шт.

33

S106633

PLUG

- bearing housing

1шт.

34

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- bearing plug

1шт.

35

S609789

FLANGE

ADAPTER -, Serial Range: cutter-coupling

1шт.
