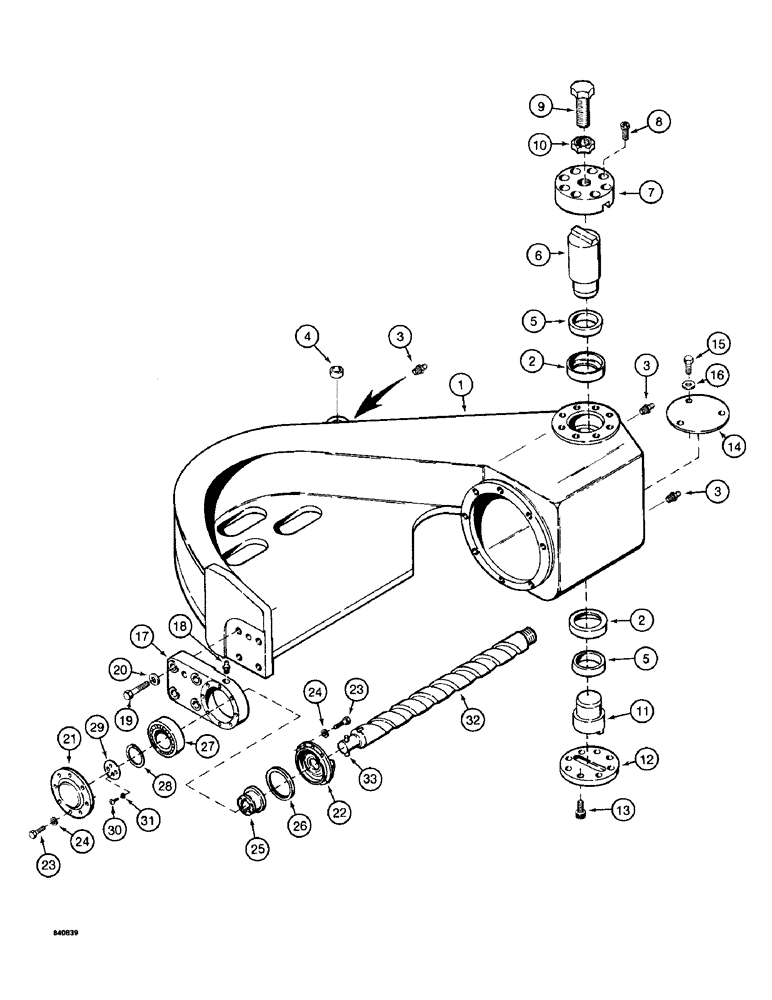

Запчасти Case 1187 (330) - ROTARY CUTTER, CUTTER ARM AND CUTTER (05) - UPPERSTRUCTURE CHASSIS

1

S510435

ARM

ASSEMBLY - rotary cutter, Includes: Ref. 2 - 4

1шт.

2

S229051

THRUST BEARING,3.3" ID x 4.75" OD x 1.405"

CUP - bearing, outer race

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

4

S23796

BUSHING

BEARING - cutter arm cylinder pin

1шт.

5

S229985

RACE

BEARING - thrust, self-aligning, inner race

2шт.

6

S232023

PIN

- cutter arm to frame, upper

1шт.

7

S232027

COVER

- upper pin

1шт.

8

61-840

HEX SOC SCREW,1/2"-13 x 2 1/2"

CAP SCREW - hex socket head, 1/2" - 13 NC x 2-1/2"

8шт.

9

S111051

BOLT

- hex head, 1-1/2" - 6 NC x 4", grade 8

1шт.

10

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

JAM NUT - hex, 1-1/2" - 6 NC

1шт.

11

S232022

PIN

- cutter arm to frame, lower

1шт.

12

S232026

COVER

- lower pin

1шт.

13

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

CAP SCREW - hex socket head, 1/2" - 13 NC x 1-1/4"

8шт.

14

S108881

COVER - bearing, cutter arm

1шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex head, 1/2" - 13 NC x 1"

3шт.

16

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, hardened, 1/2"

3шт.

17

S510428

HOUSING ASSY.

HOUSING - bearing, rotary cutter auger

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

19

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

4шт.

20

S84752

WASHER

- flat, hardened, 3/4"

4шт.

21

S510386

COVER

- bearing, outer

1шт.

22

S610865

COVER

RETAINER - oil seal

1шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

25

S515279

BUSHING

- rotary cutter auger

1шт.

26

S105675

OIL SEAL

SEAL - oil

1шт.

27

S229050

SPHERICAL BEARING,65mm ID x 120mm OD x 31mm

BEARING - self-aligning, rotary cutter

1шт.

28

S105810

RING, SNAP

SNAP RING - bearing

1шт.

29

S230014

COVER

RETAINER - rotary cutter auger

1шт.

30

173-75

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

MACHINE SCREW - round head, no. 8 - 32 NC x 3/8"

4шт.

31

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

32

S615480

CUTTER BAR

AUGER - rotary cutter

1шт.

33

S106649

DOWEL

PIN - rotary cutter auger

1шт.
