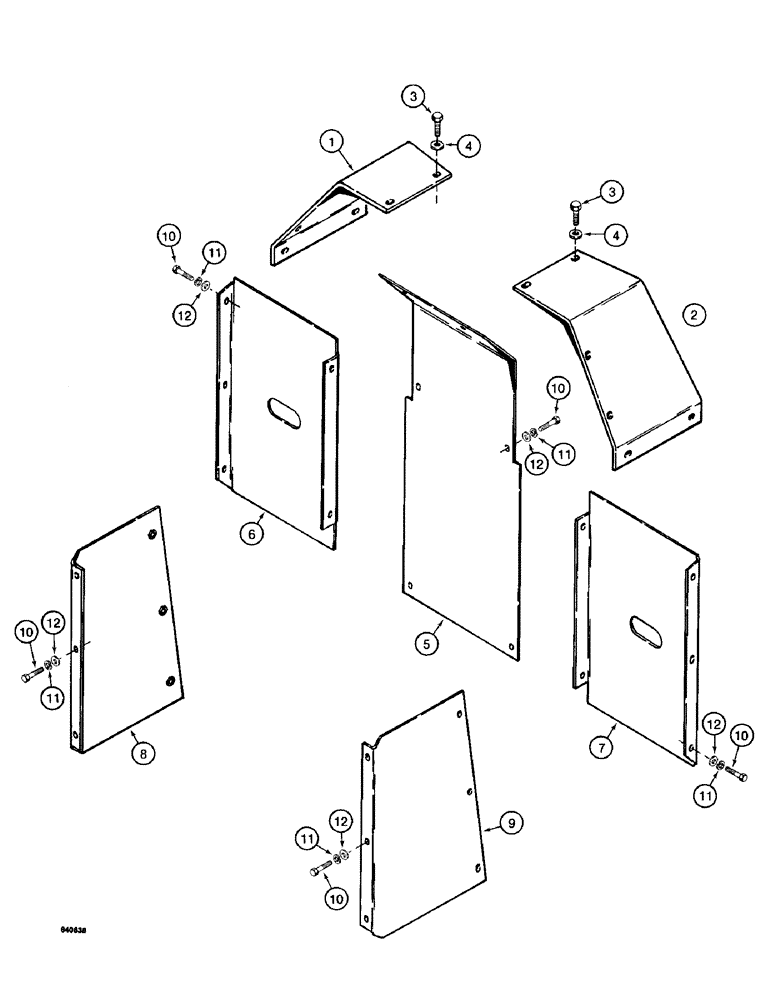

Запчасти Case 1187 (328) - ROTARY CUTTER, GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

S511370

COVER

GUARD - top, right-hand side

1шт.

2

S511371

COVER

GUARD - top, left-hand side

1шт.

3

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

12шт.

4

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2"

12шт.

5

S511374

COVER

GUARD - front, center

1шт.

6

S511372

SHEET

GUARD - front, right-hand side

1шт.

7

S512156

SHEET

GUARD - front, left-hand side

1шт.

8

S510443

SHEET

GUARD - side, right-hand

1шт.

9

S510442

SHEET

GUARD - side, left-hand

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1"

22шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

12

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8"

22шт.
