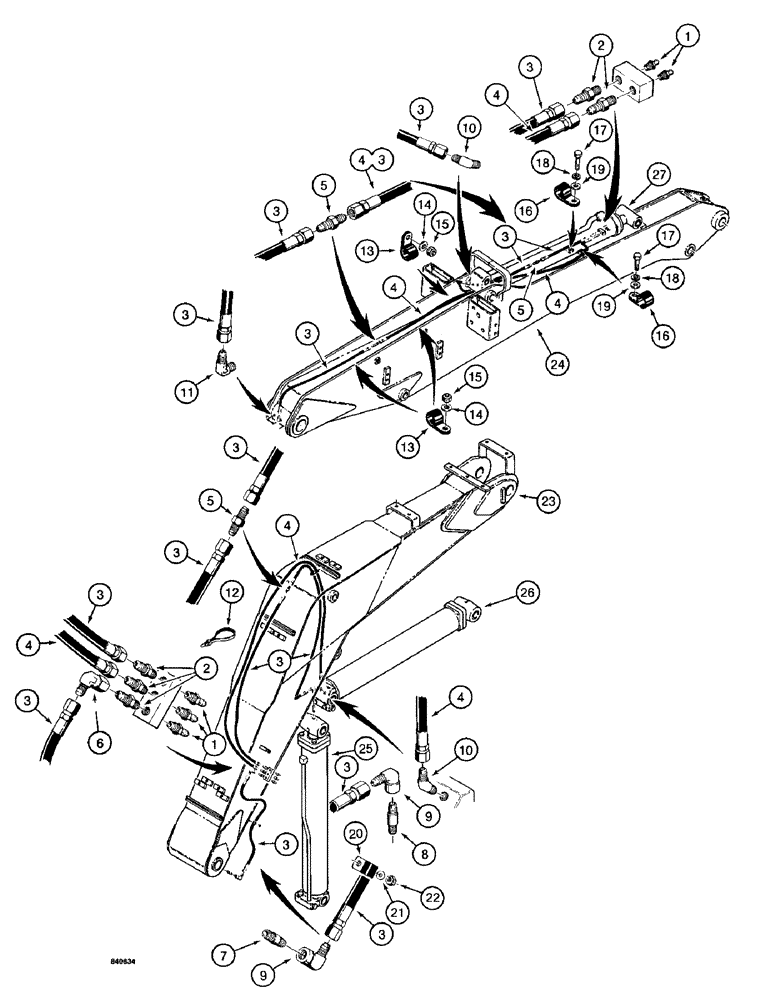

Запчасти Case 1187 (318) - LUBRICATION SYSTEM, BOOM AND ARM (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
5шт.
2
218-441
HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
ADAPTER - male, straight
5шт.
3
S77467
HOSE
- lubrication, 38" (965 mm) long
6шт.
4
S120387
HOSE ASSY.
HOSE - lubrication, 100" (2540 mm) long
2шт.
5
218-431
UNION,7/16" - 20 Male JIC x 7/16" - 20 Male JIC
CONNECTOR - male, straight
3шт.
6
218-5228
ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw
- 90 degree, swivel
1шт.
7
221-111
PIPE,Nipple, 1/8" NPT x 3"
NIPPLE - pipe, 1/8" NPT x 3"
1шт.
8
221-1908
PIPE,Nipple, 3/4" NPT x 2", X-Strng
NIPPLE - pipe, 1/8" NPT x 2"
1шт.
9
218-511
ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF
STREET ELBOW - 90 degree
2шт.
10
218-531
ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF
- male, 45 degree
2шт.
11
218-481
ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
- male, 90 degree
1шт.
12
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
13
T42284
CLAMP
- hoses to studs on arm, 5/8" ID
4шт.
14
195-525
WASHER,3/8", SAE
- flat, 3/8"
4шт.
15
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC
4шт.
16
T42284
CLAMP
- hose to tapped block on arm, used with rotary cutter only
2шт.
17
113-424
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
18
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
19
195-533
WASHER,1/2", SAE
- flat, 1/2"
2шт.
20
T42284
CLAMP
- hose to stud on boom, 5/8" ID
1шт.
21
195-525
WASHER,3/8", SAE
- flat, 3/8"
1шт.
22
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC
1шт.
23
S953943
BOOM - logger, see Figure 314 for bushings and pins
1шт.
24
S956309
BOOM
ARM - logger, see Figure 316 for bushings and pins
1шт.
25
S617367
CYLINDER
- boom, parts list Figure 266
1шт.
26
S608077
CYLINDER
- arm, parts list Figure 268
1шт.
27
REF
INSTRUCTION
CYLINDER - tool, parts list Figures 268 and 270
1шт.
Выбрано товаров: 27
