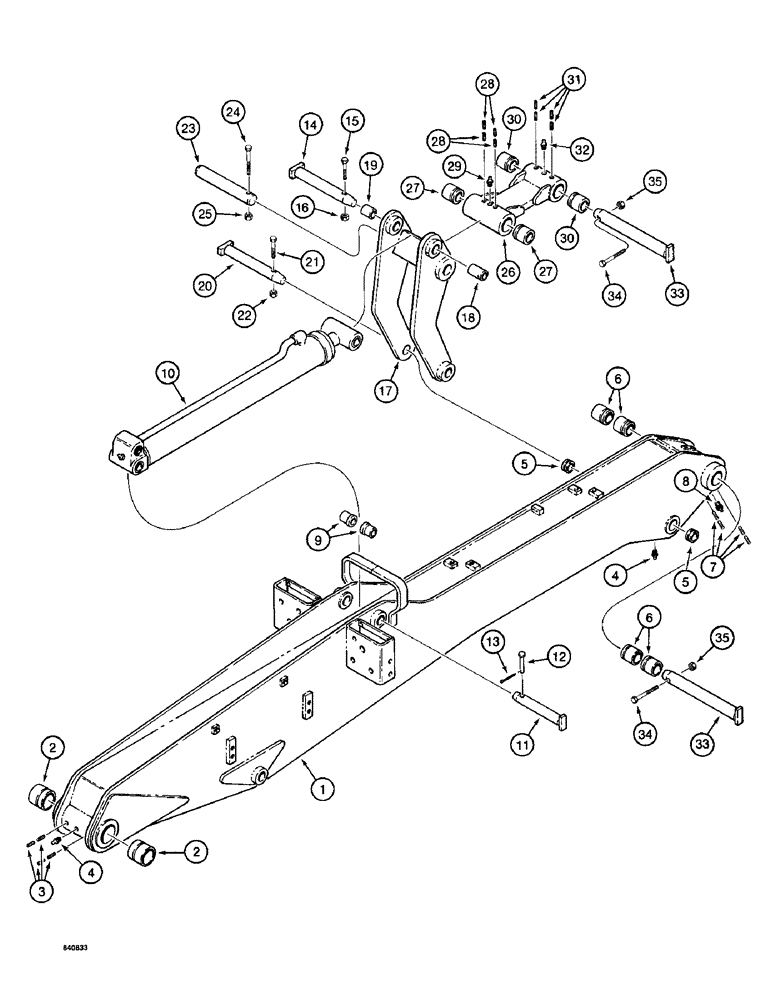

Запчасти Case 1187 (316) - ARM, LINKS AND MOUNTING PINS (05) - UPPERSTRUCTURE CHASSIS

1

S956309

BOOM

ARM - logger, used with feller buncher and rotary cutter attachments, Includes: Ref. 2 - 5

1шт.

2

S88549

BUSHING

- at boom

2шт.

3

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

4шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

5

S202134

BUSHING

- at attachment bracket

2шт.

6

S87929

BUSHING

-, Serial Range: arm-attachment

4шт.

7

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

9

S89355

BUSHING

- arm to tool cylinder, used with feller buncher only

2шт.

10

G107679

CYLINDER

- hydraulic, tool, used with feller buncher, parts list Figure 270

1шт.

10

S608077

CYLINDER

- hydraulic, tool, used with rotary cutter, parts list Figure 268

1шт.

11

S210261

PIN

- tool cylinder to arm, G107679 tool cylinder only

1шт.

11

S205653

PIN

- tool cylinder to arm, S608077 tool cylinder only

1шт.

12

S61973

AXLE PIN

CLEVIS PIN - 1/2" OD x 3-3/4" length

1шт.

13

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.

14

S201018

PIN

- tool cylinder to attachment bracket, G107679 tool cylinder only

1шт.

14

S204746

PIN

- tool cylinder to attachment bracket, S608077 tool cylinder only

1шт.

15

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

1шт.

16

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

17

S504976

BRACKET

- attachment, tool, Serial Range: cylinder-link

1шт.

18

S89357

SPACER

BUSHING - attachment bracket to tool cylinder, used with feller buncher only, 3-1/4" (82.5 mm) long

1шт.

19

S89356

BUSHING

- attachment bracket to tool cylinder, used with feller buncher only, 2-1/4" (57.2 mm) long

1шт.

20

S204746

PIN

- attachment, Serial Range: bracket-arm

1шт.

21

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

1шт.

22

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

23

S89283

PIN

- attachment, Serial Range: bracket-link

1шт.

24

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex head, 5/8" - 11 NC x 6", grade 8

1шт.

25

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8" - 11 NC

1шт.

26

S217548

LINK

- bracket to attachment, Includes: Ref. 27 - 29

1шт.

27

S87929

BUSHING

- link, attachment

2шт.

28

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

4шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

30

S87929

BUSHING

- link, at attachment bracket

2шт.

31

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

33

S220251

PIN ASSY.

PIN - boom and, Serial Range: link-attachment

2шт.

34

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex head, 5/8" - 11 NC x 6", grade 8

2шт.

35

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8" - 11 NC

2шт.
