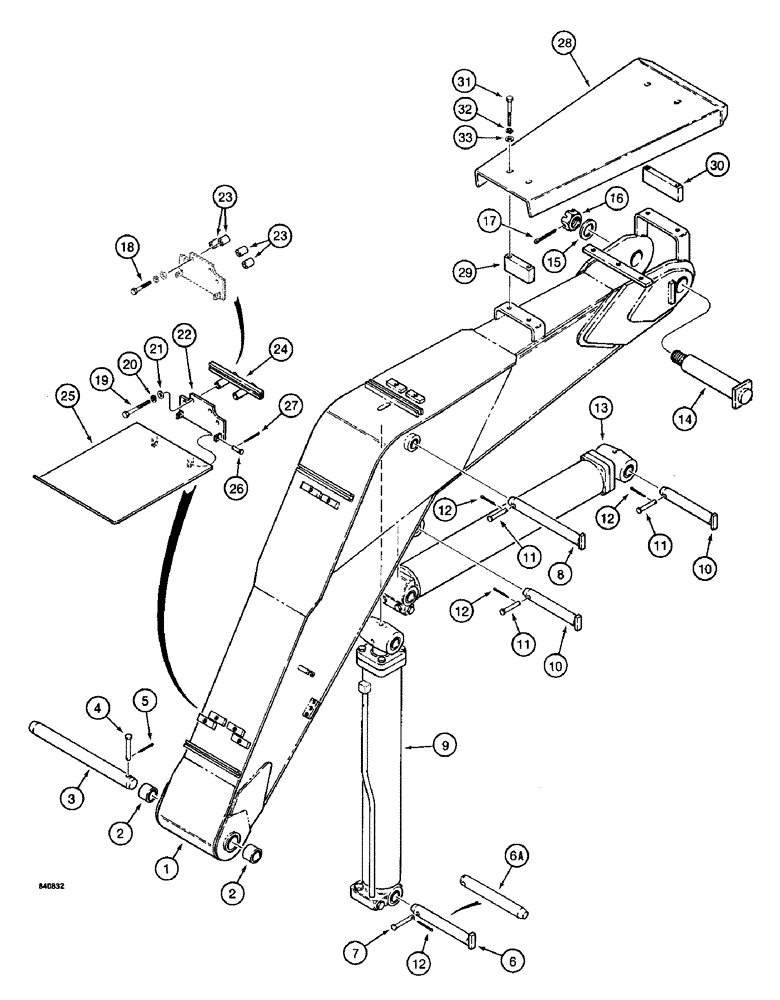

Запчасти Case 1187 (314) - BOOM AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S953943

BOOM - logger, Includes: Ref. 2

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- boom, at turntable

2шт.

3

S242327

PIN

-, Serial Range: boom-turntable

1шт.

4

S87319

PIN

CLEVIS PIN - at boom pin

1шт.

5

132-73

COTTER PIN,5/32" x 1 1/2"

PIN, Split (Cotter), 5/32" x 1 1/2"

1шт.

6

S223985

PIN ASSY.

PIN - boom cylinder at turntable, 15" (381 mm) long, with welded on bar, is used

1шт.

6a

S242326

PIN

- boom cylinder at turntable, 15.8" (401 mm) long, without welded on bar, if used

1шт.

7

S61976

CLEVIS PIN

- at lower boom cylinder pin

1шт.

8

S208517

PIN ASSY.

PIN - boom cylinder at boom

1шт.

9

S617367

CYLINDER

- hydraulic, boom, parts list Figure 266

1шт.

10

S208704

PIN

- arm cylinder at boom and at arm

2шт.

11

S61973

AXLE PIN

CLEVIS PIN - at upper boom cylinder pin and at arm cylinder pins

3шт.

12

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

4шт.

13

S608077

CYLINDER

- hydraulic, arm, parts list Figure 268

1шт.

14

S217500

PIN ASSY.

PIN -, Serial Range: arm-boom

1шт.

15

95-40

WASHER,2 1/2" x 5" x .238"

- flat, 2-1/2"

1шт.

16

129-239

NUT - hex, slotted, 2-1/2" - 8 NC

1шт.

17

132-191

COTTER PIN,5/16" x 4"

PIN, Split (Cotter), 5/16" x 4"

1шт.

18

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Used with feller buncher only Hex, 1/2"-13 x 3", G5

4шт.

19

113-2429

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex head, 1/2" - 13 NC x 5-3/4", used with rotary cutter only

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2-4шт.

21

195-530

WASHER,7/16"

- flat, 1/2"

2-4шт.

22

S221029

BRACKET

-, Serial Range: guard-boom

1шт.

23

S99133

SPACER

- bracket to boom, used with feller buncher only

4шт.

24

S229652

BRACKET

- tube clamp, acts as spacer for bracket to boom, rotary cutter only

1шт.

25

S516724

GUARD ASSY.

GUARD - boom, sliding

1шт.

26

S10805

PIN

CLEVIS PIN - 1/2" x 1" long

2шт.

27

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), 5/32" x 1"

2шт.

28

S618185

GUARD

- tube, upper boom

1шт.

29

S120473

SPACER

- guard to boom, 5.8" (147 mm) long, used with rotary cutter hydraulics only

1шт.

30

S120474

SPACER

- guard to boom, 9.5" (241 mm) long, used with rotary cutter hydraulics only

1шт.

31

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Used with rotary cutter hydraulics Hex, 1/2"-13 x 4 1/2", G5

4шт.

31

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with feller buncher hydraulics Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

33

195-530

WASHER,7/16"

- flat, 1/2"

4шт.
