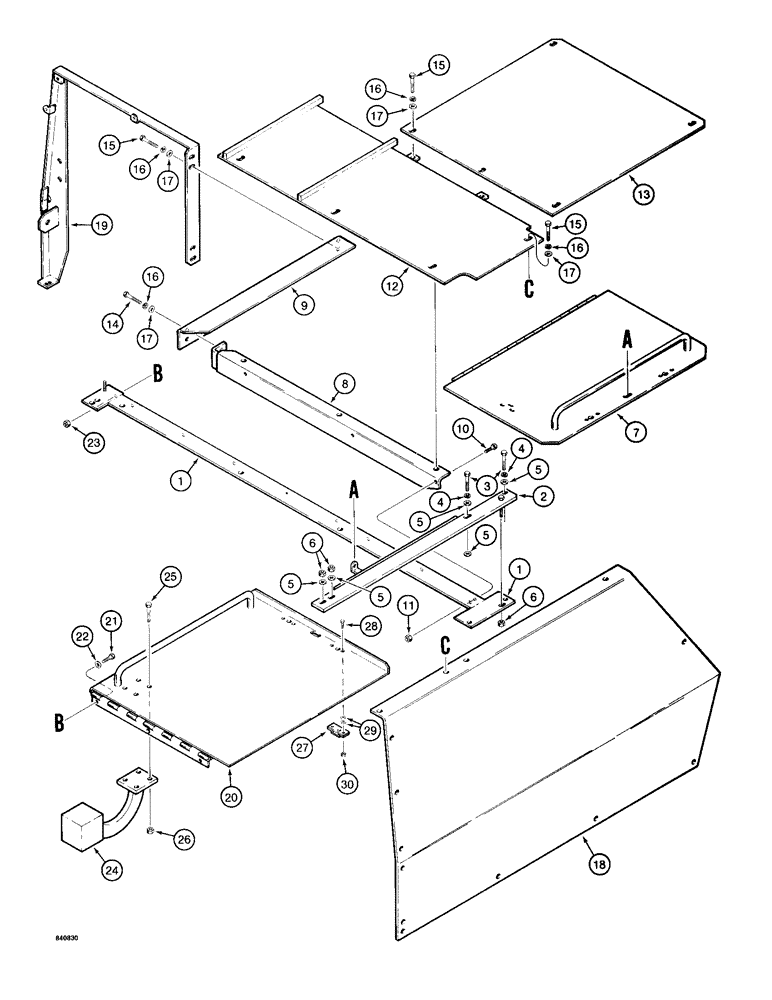

Запчасти Case 1187 (306) - TOP ACCESS COVERS (05) - UPPERSTRUCTURE CHASSIS

1

S618031

BRACKET

- support, left and right shroud, see Figure 302 for left- hand shrouds

1шт.

2

S241769

BRACKET

- support, top access cover and cooler

1шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

5шт.

6

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.

7

S516246

DOOR ASSY.

DOOR - access, engine top, see Figure 302 for other engine covers

1шт.

8

S516248

BRACKET

- rear support, top access cover

1шт.

9

S516233

BRACKET

- side support, top access cover

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

12

S618051

COVER ASSY

COVER - top access, center

1шт.

13

S516259

SHROUD

COVER - top access, front

1шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

11шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

13шт.

17

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

13шт.

18

S618087

SHROUD ASSY.

SHROUD - engine, right front

1шт.

19

S618798

SUPPORT ASSY.

BRACE - vertical, left-hand door, front, see Figure 302 for left- hand shrouds (replaces S516260)

1шт.

Replaced by S618798

1шт.

20

S516236

DOOR ASSY.

DOOR - top access, left-hand

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

22

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

3шт.

23

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

24

S516389

WEIGHT

COUNTERWEIGHT - door position, top

1шт.

25

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

26

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

27

S110414

LOCK

- top access door

2шт.

28

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

29

195-103

WASHER,5/16"

- flat, 1/4"

1шт.

30

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

4шт.
