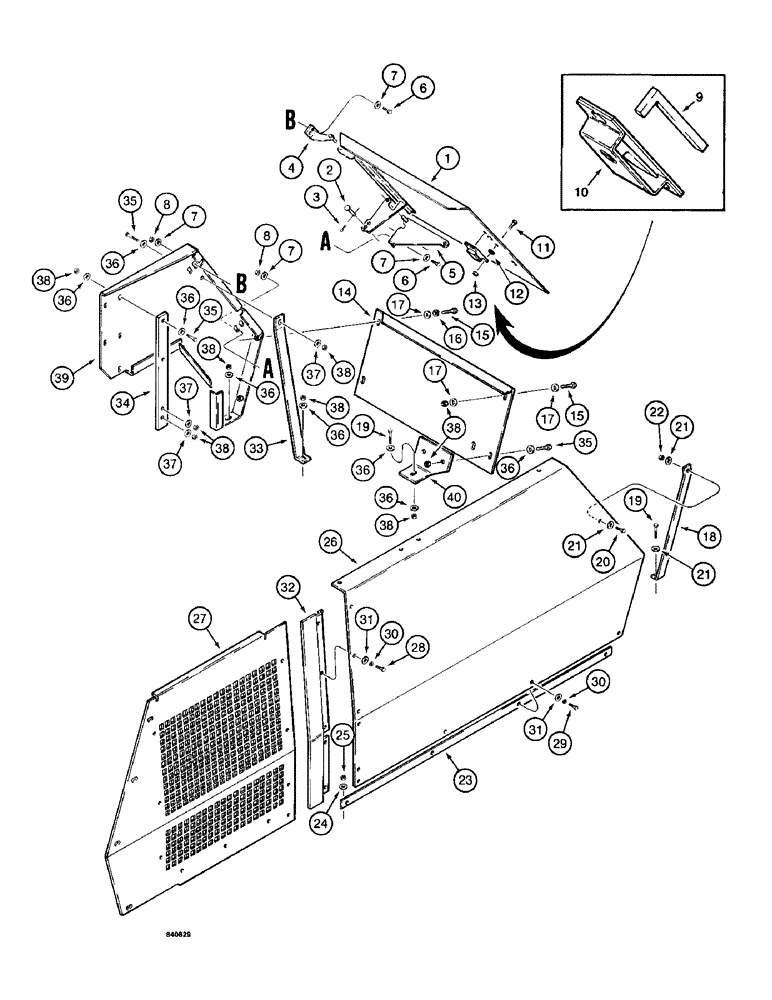

Запчасти Case 1187 (304) - RIGHT-HAND SIDE PANELS (05) - UPPERSTRUCTURE CHASSIS

1

S617752

DOOR ASSY.

DOOR - access, front

1шт.

2

S10810

CLEVIS PIN

- door holder

1шт.

3

A70250

PIN

- retainer, clevis

1шт.

4

S221455

BRACKET

HINGE - access door, top

1шт.

5

S221453

BRACKET

HINGE - access door, bottom

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

7

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

8шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

9

S115083

KEY

- lock, door and side panels

1шт.

10

S110414

LOCK

- access door

1шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

12

195-103

WASHER,5/16"

- flat, 1/4"

2шт.

13

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

14

S219991

SHEET

COVER - front, lower

1шт.

15

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

17

S95569

WASHER

- flat, 1/2", hardened

3шт.

18

S240494

BAR

BRACE - vertical, right front shroud

1шт.

19

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

21

S95569

WASHER

- flat, 1/2", hardened

3шт.

22

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

23

S516734

ANGLE

BRACKET - right front, Serial Range: shroud-turntable

1шт.

24

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

4шт.

25

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

26

S618087

SHROUD ASSY.

SHROUD - engine, right front

1шт.

27

S618168

SHROUD

- air intake, right rear, see Figure 10 for mounting to oil cooler brackets

1шт.

28

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

5шт.

29

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

31

S95569

WASHER

- flat, 1/2", hardened

9шт.

32

S516357

BRACKET

- support, right front shroud

1шт.

33

S241486

BRACE

- vertical, left-hand shroud, front

1шт.

34

S119154

BAR

BRACKET - left-hand shroud, rear

1шт.

35

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

36

S95569

WASHER

- flat, 1/2", hardened

10шт.

37

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

4шт.

38

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

10шт.

39

S618078

SHROUD

- left-hand, front

1шт.

40

S241983

BRACE

BRACKET - lower

1шт.
