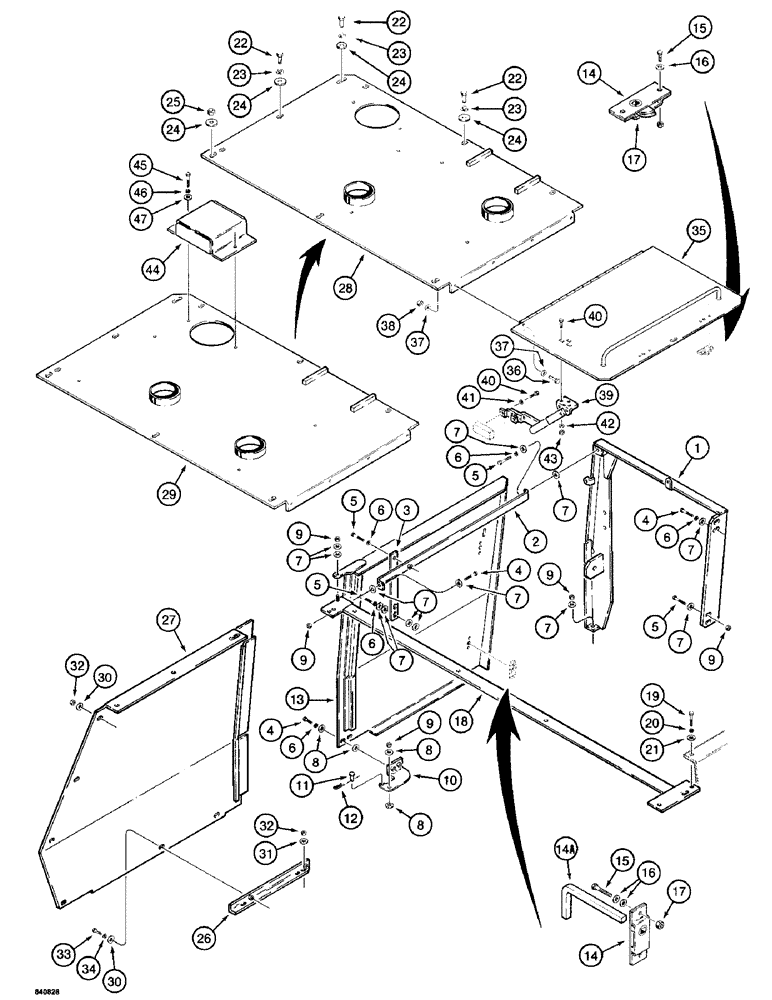

Запчасти Case 1187 (302) - ENGINE COVER AND LEFT-HAND SIDE PANELS (05) - UPPERSTRUCTURE CHASSIS

1

S516260

BRACE

- vertical, left-hand door, front

1шт.

2

S241914

BRACE

- horizontal, left-hand door

1шт.

3

S241534

BRACE

- vertical, left-hand door, rear

1шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

7

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, spacer

1шт.

8

S95569

WASHER

- flat, 1/2", hardened

4шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

10

S241540

HINGE

- left-hand door, lower

1шт.

11

S10775

PIN

CLEVIS PIN - door holder

1шт.

12

A70250

PIN

- retainer, clevis

1шт.

13

S617805

DOOR ASSY.

DOOR - access, left front

1шт.

14

S110414

LOCK

- door, left front and top

4шт.

14a

S115083

KEY

- lock, access door

1шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

16

195-103

WASHER,5/16"

- flat, 1/4"

1шт.

17

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

8шт.

18

S618031

BRACKET

- support, left and right shroud

1шт.

19

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

S95569

WASHER

- flat, 1/2", hardened

1шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

7шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

24

S95569

WASHER

- flat, 1/2", hardened

10шт.

25

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.

26

S241521

ANGLE

BRACKET - left rear, Serial Range: shroud-turntable

1шт.

27

S617798

SHROUD ASSY.

SHROUD - engine, left rear

1шт.

28

S618170

SHROUD

COVER - engine, top, used with Case engine

1шт.

29

S617810

SHROUD

COVER - engine, top, used with Detroit diesel engine

1шт.

30

S95569

WASHER

- flat, 1/2", hardened

6шт.

31

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

2шт.

32

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

33

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

35

S516246

DOOR ASSY.

DOOR - access, top

1шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

37

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

8шт.

38

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

39

S219473

BRACE

SUPPORT - door, open position

1шт.

40

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

5шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

42

195-102

WASHER,1/4"

- flat, 5/16"

3шт.

43

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

3шт.

44

S516837

COVER ASSY

COVER - hydraulic oil reservoir air breather

1шт.

45

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

47

S95569

WASHER

- flat, hardened

2шт.
