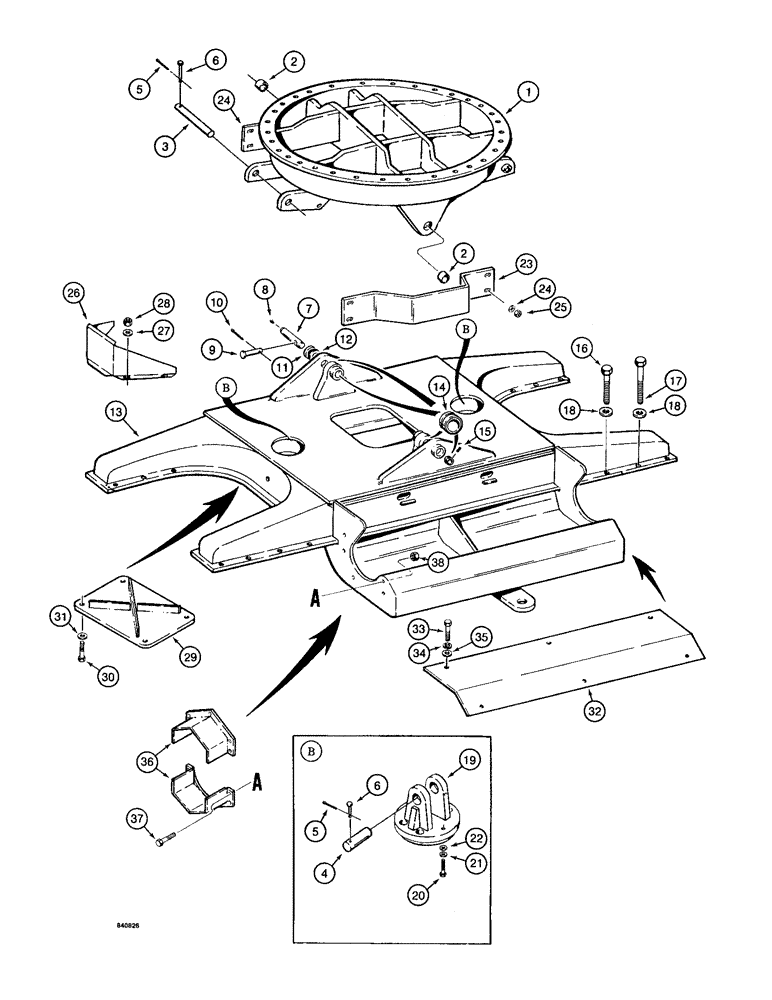

Запчасти Case 1187 (298) - TURNTABLE LEVELER AND UNDERCARRIAGE (04) - UNDERCARRIAGE

1

S610362

LEVEL

ER - turntable, at bearing, Includes: Ref. 2

1шт.

2

S202192

BUSHING

- leveler

2шт.

3

S78554

PIN

- leveler cylinder to turntable leveler

2шт.

4

S108638

PIN

- leveler cylinder to mounting bracket

2шт.

5

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), 5/32" x 1"

4шт.

6

S61973

AXLE PIN

CLEVIS PIN - 1/2" x 3-3/4"

4шт.

7

S241477

PIN

- turntable leveler to turntable platform

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

9

S87319

PIN

CLEVIS PIN - used with S241477 pin

2шт.

10

132-71

COTTER PIN,5/32" x 1 1/4"

PIN, Split (Cotter), 5/32" x 1 1/4"

2шт.

11

S111776

WASHER

- special, spacer, 1/8" thick

1шт.

12

S111778

WASHER

- special, spacer, 1/16" thick

1шт.

13

S956625

LEVEL

PLATFORM - turntable leveler, Includes: Ref. 14 and 15

1шт.

14

S241137

BUSHING

- platform

4шт.

15

178-57

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

- 3/8" - 16 NC x 3/4", cone point

4шт.

16

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex head, 7/8" - 9 NC x 2-1/4", grade 8

16шт.

17

26-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

- hex head, 7/8" - 9 NC x 3-1/2", grade 8

16шт.

18

S92341

WASHER

- flat, 7/8", hardened

32шт.

19

S617126

BRACKET

- leveler, Serial Range: cylinder-platform

2шт.

20

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex head, 1/2" - 13 NC x 2", grade 8

8шт.

21

S95569

WASHER

- flat, 1/2", hardened

8шт.

22

S119536

SPACER

-, Serial Range: bracket-platform

8шт.

23

S611713

COVER

GUARD - hose, at leveler

2шт.

24

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

8шт.

25

131-206

NUT,3/8"-16

NUT - hex, self-locking, 3/8" - 16 NC

8шт.

26

S615046

GUARD

- dirt, leveler cylinder

2шт.

27

S95569

WASHER

- flat, 1/2", hardened

8шт.

28

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

8шт.

29

S516476

COVER

- swivel, lower

1шт.

30

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

31

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

32

S617420

COVER

- front, drive motor

1шт.

33

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

35

S95569

WASHER

- flat, hardened, 1/2"

6шт.

36

S516193

COVER

GUARD - brake, drive motor

4шт.

37

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", grade 8

10шт.

38

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.
