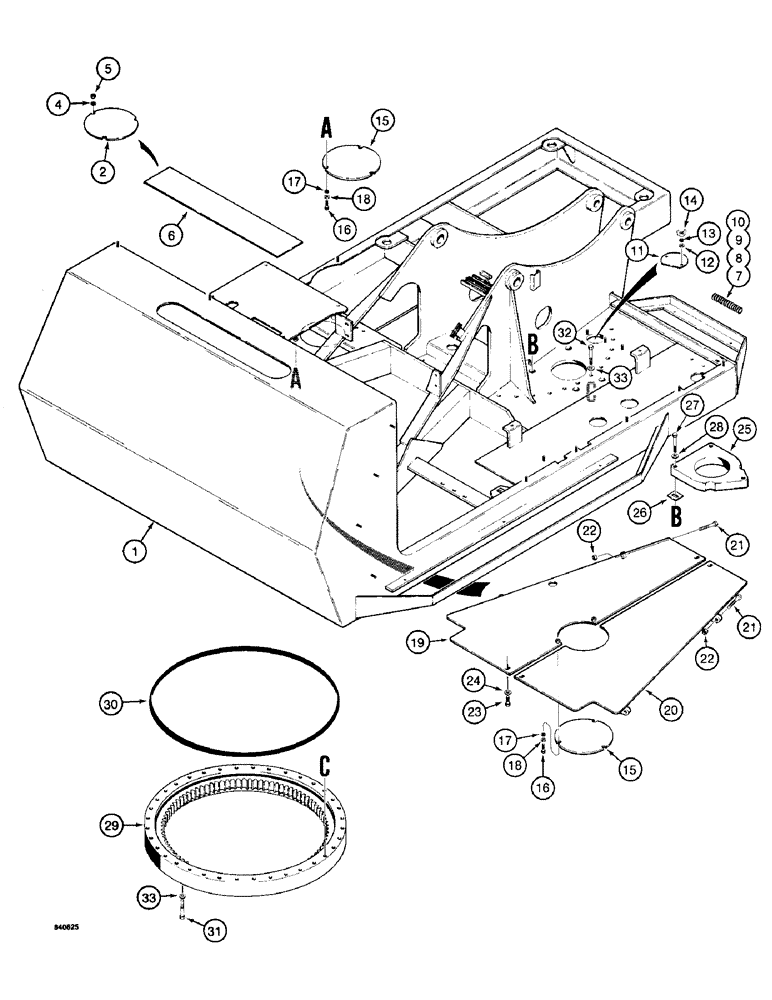

Запчасти Case 1187 (294) - TURNTABLE AND BEARING (04) - UNDERCARRIAGE

1

S956842

ASSEMBLY

TURNTABLE - logger, if complete turntable is replaced, also order boom cylinder and main boom pins at turntable, see Figure 314 reference numbers 3 and 6A

1шт.

2

S241705

COVER

PLATE - cover, bolt on, if used

2шт.

3

345-84

ADHESIVE

SEALANT - S241705 cover plate to turntable, 3 oz. tube, not shown

1шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

6шт.

5

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

6

S242214

PLATE

- cover, weld on type, if used

1шт.

7

REF

INSTRUCTION

GUARD - edge, turntable, 8" (203 mm) long, cut from S118481

1шт.

8

REF

INSTRUCTION

GUARD - edge, turntable, 9" (229 mm) long, cut from S118481

1шт.

9

REF

INSTRUCTION

GUARD - edge, turntable, 11" (279 mm) long, cut from S118481

1шт.

10

REF

INSTRUCTION

GUARD - edge, turntable, 17" (432 mm) long, cut from S118481

1шт.

11

S76664

COVER

- bearing access, not required when swing gear spray lubricator is installed

1шт.

12

195-104

WASHER,3/8"

- flat, 3/8"

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

S77941

NUT - wing, 3/8" - 16 NC

2шт.

15

S241192

COVER

- engine, lower

2шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

18

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

5шт.

19

S515835

GUARD ASSY.

GUARD - lower protection, left-hand

1шт.

20

S515837

GUARD ASSY.

GUARD - lower protection, right-hand

1шт.

21

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

22

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

23

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

24

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

25

S516540

PLATE

SUPPORT - swing gearbox mounting, welded on turntable

1шт.

26

S84889

SHIM,.003" Thk

(.0762 mm), Swing gearbox mounting to turntable .003" Thk

1шт.

26

S77916

SHIM,.005" Thk

(.1270 mm), Swing gearbox mounting to turntable .005" Thk

1шт.

26

S84890

SHIM,.007" Thk

(.1778 mm), Swing gearbox mounting to turntable .007" Thk

1шт.

26

S77917

SHIM,.010" Thk

(.2540 mm), Swing gearbox mounting to turntable .010" Thk

1шт.

26

S77918

SHIM,.015" Thk

(.3810 mm), Swing gearbox mounting to turntable .015" Thk

1шт.

26

S77919

SHIM,.030" Thk

(.7620 mm), Swing gearbox mounting to turntable .030" Thk

1шт.

26

S77920

SHIM,.060" Thk

(1.524 mm), Swing gearbox mounting to turntable .060" Thk

1шт.

27

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

- hex head, 20 mm - 2.5 x 55 mm (10.9), gearbox to support

3шт.

BOLT MAY ALSO BE 828-20070 (20 x 70 mm 10.8) FOR THE METRIC VERSION WITH THE THICKER MTG. FLANGE.

1шт.

28

S118818

WASHER

- special, hardened

3шт.

S508670

BEARING ASSY

BEARING ASSEMBLY - turntable, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - without seals

1шт.

30

S105067

SEAL

- bearing, 156" (3962 mm) long, cut to required length

2шт.

31

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

36шт.

32

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4" - 10 NC x 2-1/4", G8

34шт.

33

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4", hardened

70шт.

S118481

PACKAGE

GUARD - edge, bulk roll, 1" (25 mm) ID x 60" (1524 mm) long

1шт.
