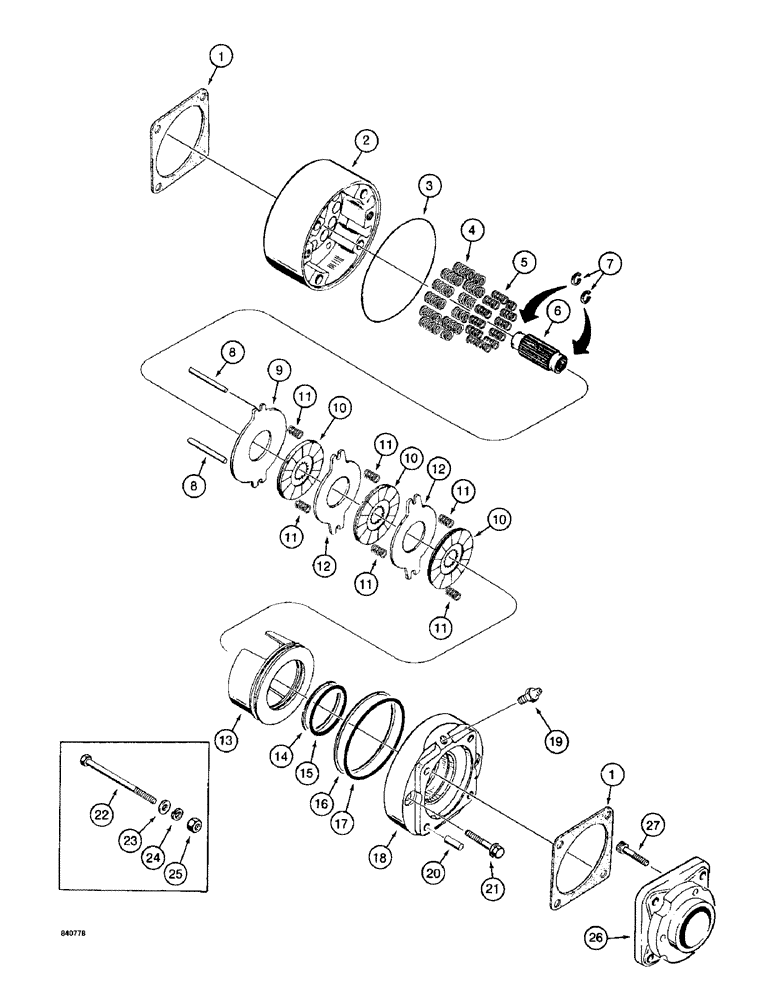

Запчасти Case 1187 (148) - TRACK DRIVE BRAKE (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

S617727

BRAKE ASSY.

BRAKE ASSEMBLY - track drive, Includes: Ref. 1 - 21

2шт.

1

S107753

GASKET

- brake assembly, if used

2шт.

2

N8685

HOUSING

- brake assembly

1шт.

3

S107759

PACKING

O-RING - housing seal

1шт.

4

S107755

SPRING

- compression, outer

12шт.

5

S107754

SPRING

- compression, inner

12шт.

6

N8686

SHAFT

- splined

1шт.

7

R16289

SNAP RING,1.06", Int, #106

RING, Snap, , shaft 1.06", Int, #106

2шт.

8

S107760

PIN

- torque

2шт.

9

S107756

DISC

- primary, fixed

1шт.

10

S109455

DISC

- rotating

3шт.

11

S107758

SPRING

- compression

6шт.

12

S109456

DISC

- fixed

2шт.

13

S107764

PISTON

- track brake

1шт.

14

S107767

BACK-UP RING

BACKUP RING - piston o-ring, small

1шт.

15

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

- piston, small

1шт.

16

S107765

BACK-UP RING

BACKUP RING - piston o-ring, large

1шт.

17

S107763

O-RING

- piston, large

1шт.

18

N8687

PLATE

- brake end

1шт.

19

S107762

SCREW

- air removal

1шт.

20

N60355

PLUG

- vinyl

1шт.

21

S114839

FLANGE BOLT

BOLT - hex flange head, special

2шт.

22

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

Mounts brake assembly and adapter to track drive motor Hex, 1/2"-13 x 6", G5

8шт.

23

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- flat, 1/2", hardened

8шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

26

S510345

ADAPTER

- brake assembly to final drive transmission

2шт.

27

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

BOLT - hex socket head, 1/2" - 13 NC x 1-1/2", grade 8, adapter to final drive transmission

6шт.

Выбрано товаров: 28
