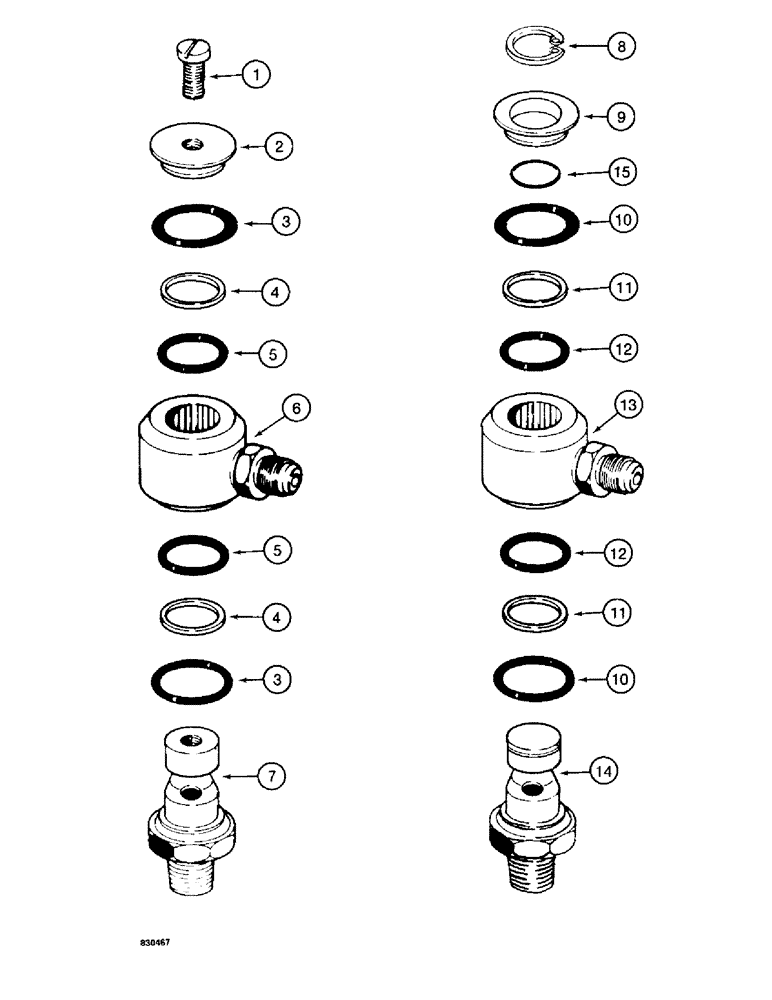

Запчасти Case 1187 (146) - INNER SWIVEL - UPPER (04) - UNDERCARRIAGE

S209351

FITTING

SWIVEL ASSEMBLY - Mayson type - with screw mounted cap, Includes: Ref. 1 - 7

1шт.

1

177-95

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

MACHINE SCREW - no. 10-32 NF x 3/8", Mayson type - with screw mounted cap

1шт.

2

S7989

CAP

- grit, Mayson type - with screw mounted cap

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outside, Mayson type - with screw mounted cap

2шт.

4

N8522

WASHER

BACKUP RING - internal o-ring, Mayson type - with screw mounted cap

2шт.

5

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- internal seal, Mayson type - with screw mounted cap

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - swivel, Mayson type - with screw mounted cap

1шт.

7

NSS

NOT SOLD SEPARAT

STEM - swivel, Mayson type - with screw mounted cap

1шт.

S209351

FITTING

SWIVEL ASSEMBLY - Parker Hannifin type - with snap ring, Includes: Ref. 8 - 15

1шт.

8

F21293

SNAP RING,#59, Ext

RING, Snap, , cap, Parker Hannifin type, with snap ring #59, Ext

1шт.

Part of Seal Kit, P/N S95177

1шт.

9

S110297

CAP

- grit, Parker Hannifin type - with snap ring

1шт.

10

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outside(replaces L33215), Parker Hannifin type - with snap ring

2шт.

Part of Seal Kit, P/N S95177

1шт.

11

N8522

WASHER

BACKUP RING - internal seal, Parker Hannifin type - with snap ring

2шт.

Part of Seal Kit, P/N S95177

1шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- internal seal, Parker Hannifin type - with snap ring

2шт.

Part of Seal Kit, P/N S95177

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - swivel, Parker Hannifin type - with snap ring

1шт.

14

NSS

NOT SOLD SEPARAT

STEM - swivel, Parker Hannifin type - with snap ring

1шт.

15

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- small, inside cap(replaces A65918), Parker Hannifin type - with snap ring

1шт.

Part of Seal Kit, P/N S95177

1шт.

S95177

KIT

SEAL KIT - for Parker Hannifin type fitting only, Includes: Ref. 8, 10, 11, 12, 14, and 15, with snap ring

1шт.
