Запчасти Case 1187 (142) - DRIVE RANGE AND BRAKE HYDRAULIC LINES (04) - UNDERCARRIAGE

1

S516559

VALVE

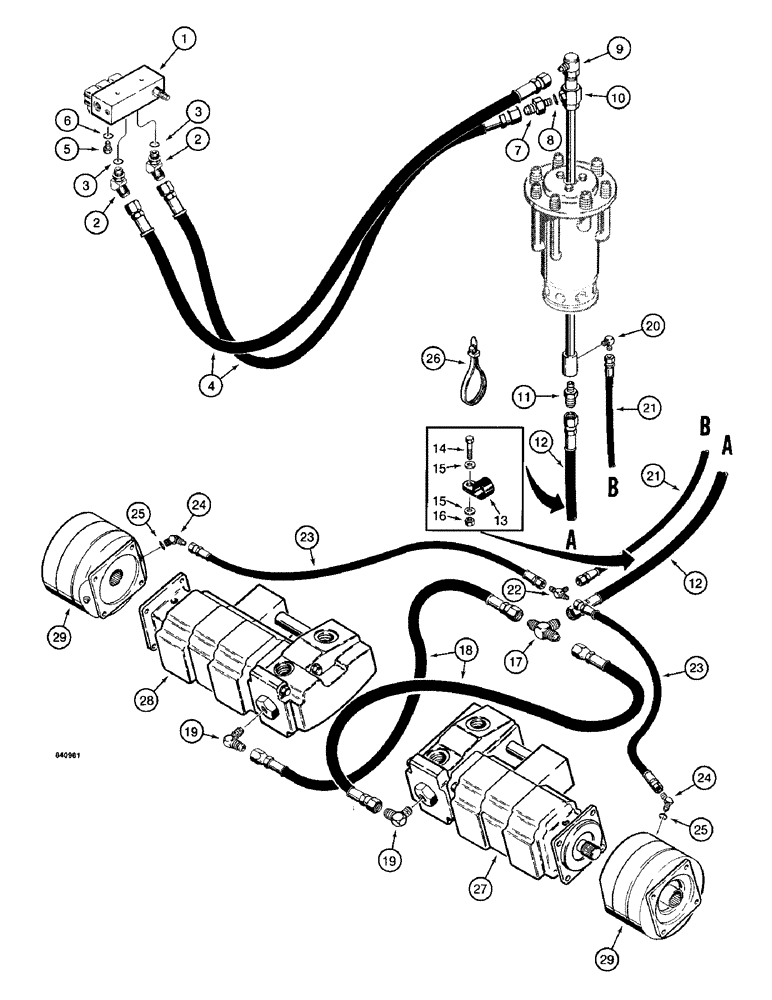

SOLENOID CONTROL VALVE - parts list Figure 232

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, at solenoid control valve, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - to inner swivel, 50" (1270 mm) long

2шт.

5

76349

PLUG,9/16" - 18 ORB

"V" port of solenoid valve, Incl. Ref. 6 Hex Hd, 9/16"-18 ORB

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.

7

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, at inner swivel, lower port, Includes: Ref. 8

1шт.

8

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter

1шт.

9

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, upper, see Figure 146 for correct assembly and component parts

1шт.

10

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, lower, parts list Figure 144

1шт.

11

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, inner swivel, bottom port

1шт.

12

S11227

HOSE

- drive range, from swivel, 36" (914 mm) long

1шт.

13

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose to frame, 3/4" ID

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

17

218-594

TEE,3/4"-16, 37 Degree

- drive range hoses

1шт.

18

S11227

HOSE

- drive range, to drive motors, 36" (914 mm) long

2шт.

19

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree, at drive motors

2шт.

20

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, inner swivel, side port

1шт.

21

S77467

HOSE

- brake, from swivel, 38" (965 mm) long

1шт.

22

218-591

TEE,7/16"-20, 37 Degree

- brake hoses

1шт.

23

S77467

HOSE

- to brakes, 38" (965 mm) long

2шт.

24

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, at brakes, Includes: Ref. 25

2шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

S617342

MOTOR

- hydraulic, track drive, right-hand, parts list Figure 132

1шт.

Should be Left Hand

1шт.

28

S617341

MOTOR

- hydraulic, track drive, left-hand, parts list Figure 132

1шт.

Should be Right Hand

1шт.

29

S512396

BRAKE

- track drive, parts list Figure 148

2шт.
