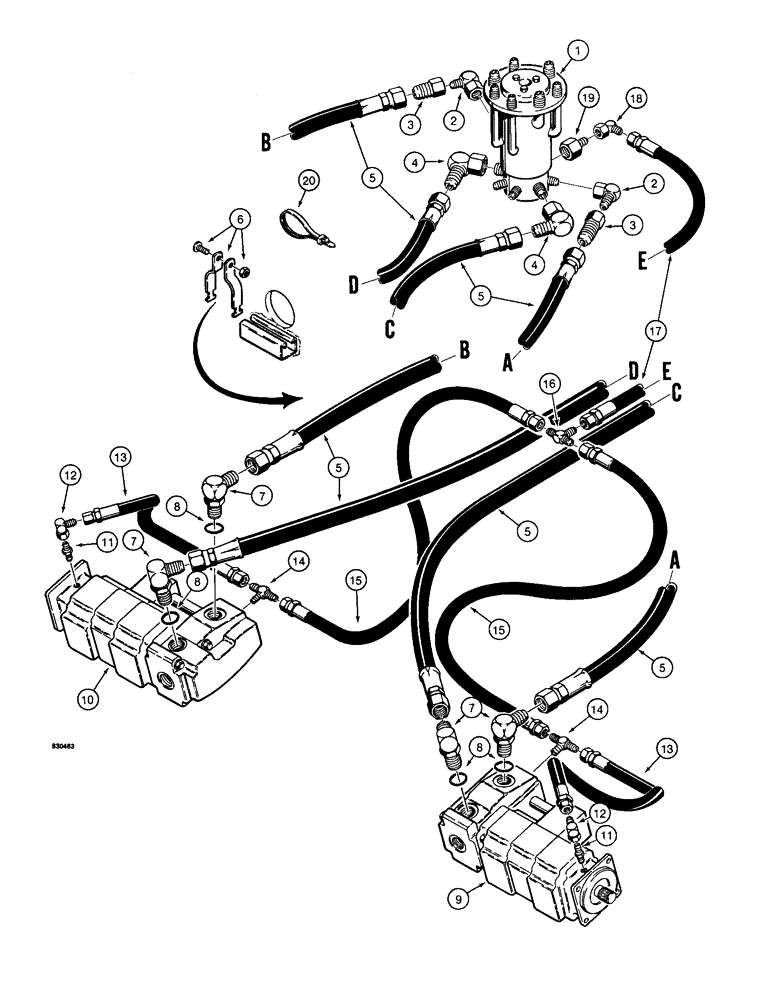

Запчасти Case 1187 (138) - TRACK DRIVE HYDRAULIC LINES - LOWER, USED WITH HYDRAULIC SWIVEL MALE PORTS (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 262

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at swivel ports no. 2 and no. 7 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

3

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

ADAPTER - straight, elbow to hose

2шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, at swivel ports no. 3 and no. 6

2шт.

5

S8626

HOSE ASSY.

HOSE - track drive circuits, 60" (1524 mm) long

4шт.

6

S98324

CLAMP

- hose

4шт.

7

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

at drive motors, Incl. Ref. 8 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

4шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

9

S617342

MOTOR

- hydraulic, track drive, right-hand, parts list Figure 132

1шт.

Should be Left Hand

1шт.

10

S617341

MOTOR

- hydraulic track drive, left-hand, parts list Figure 132

1шт.

Should be Right Hand

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - motor drain ports

2шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, motor drain ports

2шт.

13

S241217

HOSE ASSY.

HOSE - motor drain ports, 21" (533 mm) long

2шт.

14

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

- motor drain ports

2шт.

15

S241217

HOSE ASSY.

HOSE - tee to tee, 21" (533 mm) long

2шт.

16

218-593

TEE,9/16"-18, 37 Degree

- hose connecting

1шт.

17

S241219

HOSE ASSY.

HOSE - to swivel, 50" (1270 mm) long

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, at swivel port no. 1

1шт.

19

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ADAPTER - straight, at swivel port no. 1

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
