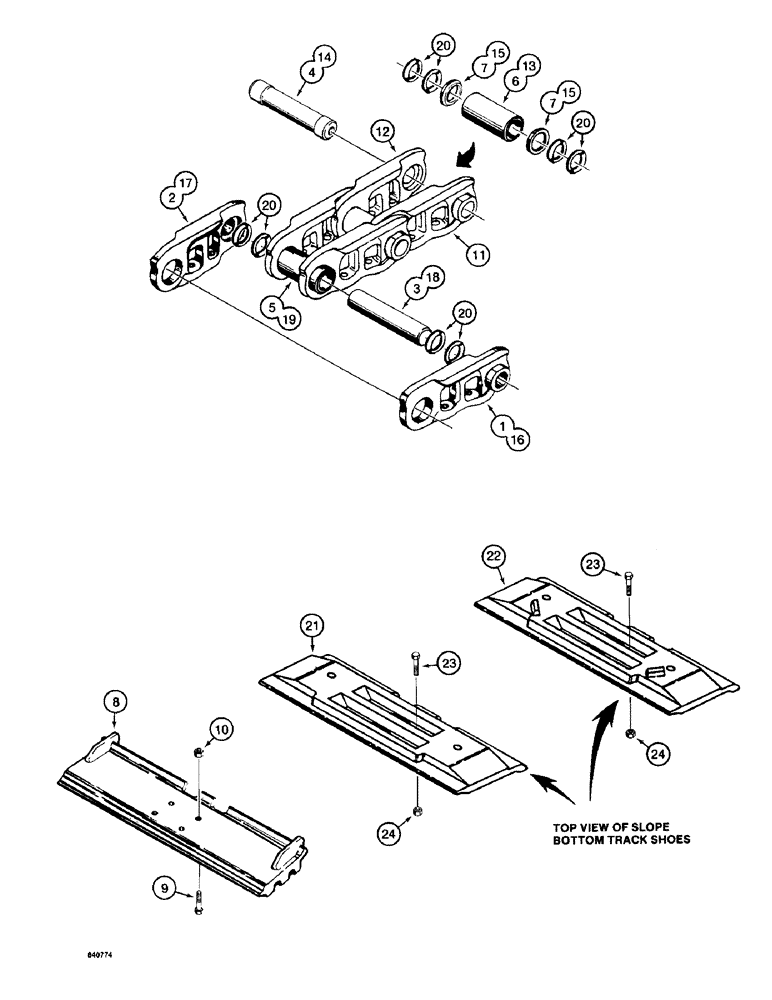

Запчасти Case 1187 (126) - TRACK SHOES, LINKS, AND PINS (04) - UNDERCARRIAGE

S232252

CHAIN (CE)

CHAIN ASSEMBLY - track, with 23 links, "I" identification, Includes: Ref. 1 - 7

2шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.

1

S108920

LINK

- track, right hand

23шт.

2

S108921

LINK

- track, left hand

23шт.

3

S108923

PIN

- Standard

22шт.

4

S108926

PIN

- Master

1шт.

5

S108924

BUSHING

- standard pin

22шт.

6

S108922

BUSHING

- master pin

1шт.

7

S108925

SPACER

- master bushing

2шт.

8

S516392

SHOE

TRACK SHOE - triple grouser with anti-scissor lugs, 24" (610 mm), used with "I" identification track chain

46шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.

9

S108928

BOLT

- track shoe, used with S516392 shoe

184шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.

10

S108929

NUT

- track shoe, used with S516392 shoe

184шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.

S225061

CHAIN (CE)

CHAIN ASSEMBLY - track, with 23 links "C" identification, Includes: Ref. 11 - 20

2шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.

11

S89258

LINK

- master, right hand

1шт.

12

S89259

LINK

- master, left hand

1шт.

13

S89265

BUSHING

- master pin

1шт.

14

S89263

PIN

- master

1шт.

15

S89261

SPACER

- master bushing

2шт.

16

S89256

LINK

- track, right hand

22шт.

17

S89257

LINK

- track, left-hand

22шт.

18

S89262

PIN

- standard

22шт.

19

S89264

BUSHING

- standard pin

22шт.

20

S89260

SEAL

- track pin, used with "C" identification track only

92шт.

21

S954052

TRACK SHOE

- slope bottom without grip grouser, 30" (762 mm), used with "C" identification track

46шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.

22

S953224

TRACK SHOE

- slope bottom with grip grouser, 24" (610 mm), used with "C" identification track

46шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.

23

S89251

BOLT

- track shoe, used with S954052 and S953224 shoe

184шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.

24

S89252

NUT

- track shoe, used with S954052 and S953224 shoe

184шт.

Quantities shown for Refs. with one track. Two tracks required for machine.

1шт.
