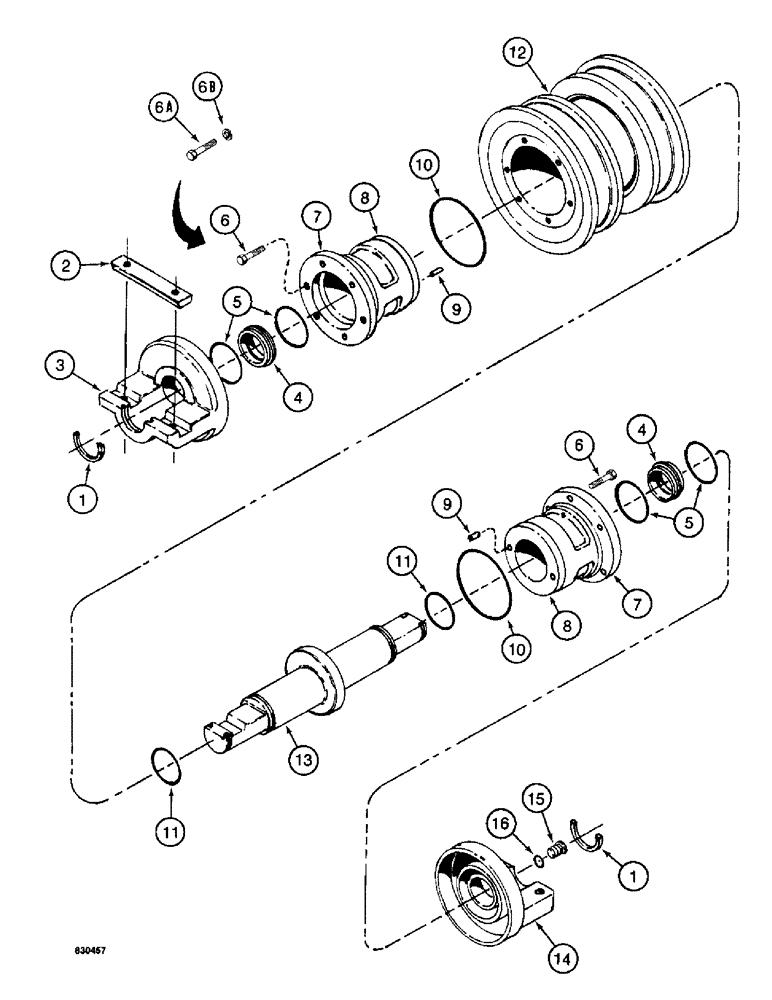

Запчасти Case 1187 (120) - DOUBLE FLANGE TRACK ROLLER, TYPE B (04) - UNDERCARRIAGE

S507721

ROLLER

TRACK ROLLER ASSEMBLY - double flange, type B, Includes: Ref. 1 - 16

4шт.

1

S101385

RING

RETAINING RING - shaft to mounting bracket

2шт.

2

S116135

LOCK

BAR - lock, roller shaft

1шт.

3

S101379

COLLAR

BRACKET - mounting, inner

1шт.

S209139

SEAL

KIT - oil seal, track roller, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - seal

2шт.

5

S90508

SEAL

- oil, rubber

2шт.

6

REF

INSTRUCTION

BOLT - hex, self-locking, order Refs. 6A and 6B for service

12шт.

6a

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

- hex head, 3/8" - 16 NC x 1-1/8", grade 8

12шт.

6b

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

S90509

BUSHING

HOUSING - bushing

2шт.

8

N8555

BUSHING

- track roller

2шт.

9

S89318

PIN

DOWEL PIN - bushing housing

2шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- large, bushing housing

2шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- small, roller shaft

2шт.

12

NSS

NOT SOLD SEPARAT

TRACK ROLLER - double flange

1шт.

13

S89316

SHAFT

- track roller

1шт.

14

S89314

COLLAR

BRACKET - mounting, outer

1шт.

15

S116136

PLUG

- filler, special

1шт.

16

S16153

O-RING - filler plug

1шт.
