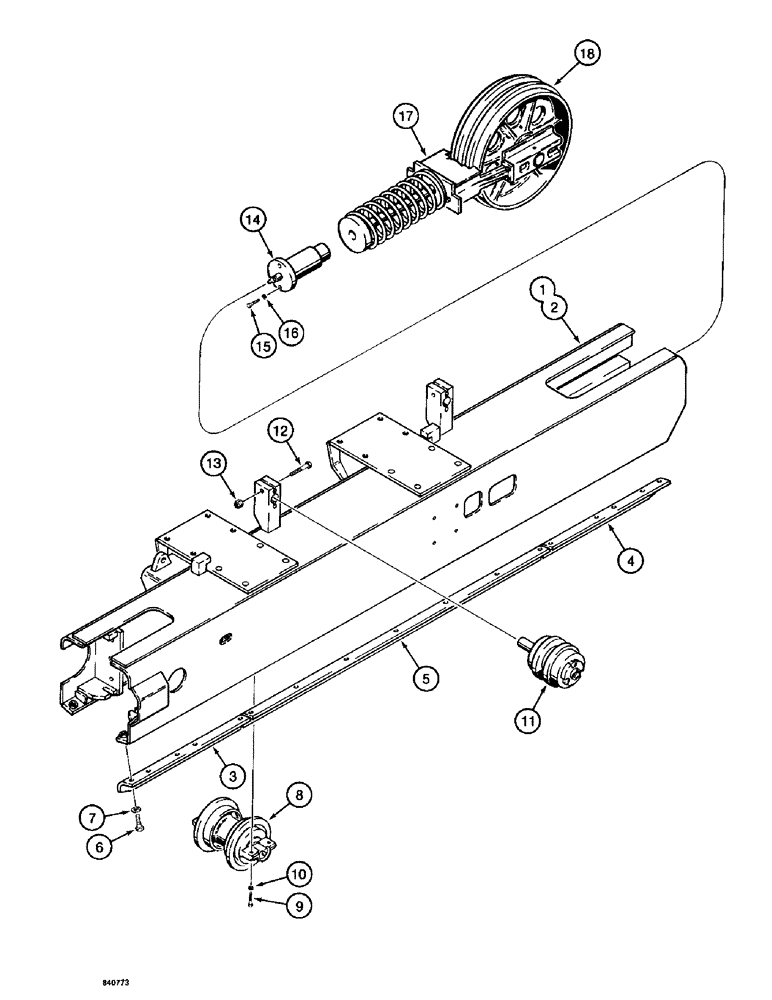

Запчасти Case 1187 (106) - TRACK FRAMES (04) - UNDERCARRIAGE

1

S956634

FUNNEL

TRACK FRAME - right-hand

1шт.

2

S956635

FUNNEL

TRACK FRAME - left-hand, not shown

1шт.

3

S514875

ANGLE

WEAR PLATE - track frame, right-hand rear outer and front inner, left-hand rear inner and front outer

4шт.

4

S514876

ANGLE

WEAR PLATE - track frame, right-hand rear inner and front outer, left-hand rear outer and front inner

4шт.

5

S514877

ANGLE

WEAR PLATE - track frame, center, right-hand and left-hand inner and outer

4шт.

6

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

68шт.

7

S84752

WASHER

- flat, 3/4", hardened

68шт.

8

REF

INSTRUCTION

TRACK ROLLER - single flange, see Figures 114-118 for correct roller

12шт.

8

REF

INSTRUCTION

TRACK ROLLER - double flange, see Figures 120-124 for correct roller

4шт.

9

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

64шт.

10

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

64шт.

11

S239440

ROLLER

CARRIER ROLLER - upper, parts list Figure 112

4шт.

12

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

4шт.

13

131-1400

LOCK NUT,Jam, 3/4"-16

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

14

S514603

CYLINDER

- track adjustment, parts list Figure 108

2шт.

15

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Track adjuster to frame Hex, 1/2"-13 x 2", G5

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

17

REF

INSTRUCTION

ADJUSTER - track, parts list Figure 110

2шт.

18

S504106

FRONT IDLER

IDLER ASSEMBLY - track, parts list Figure 110

2шт.
