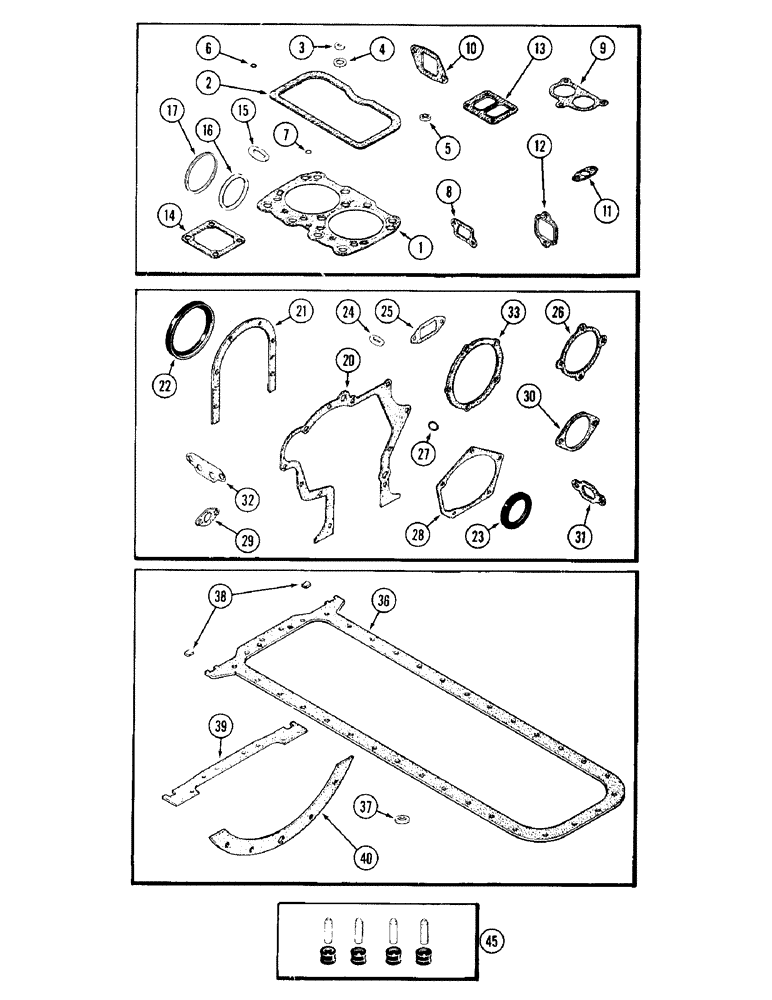

Запчасти Case 1187 (052) - ENGINE GASKET KITS, 504BDT DIESEL ENGINE (01) - ENGINE

A157300

GASKET

KIT - valve grind, Includes: Ref. 1 - 17

1шт.

For complete engine overhaul order A157300, A44075, A152479 and M20614. Reference numbers in description are for CARES use only and can not be ordered separately.

1шт.

1

A138397

CYLINDER HEAD GASKET

- cylinder head

3шт.

2

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover

3шт.

3

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt

3шт.

4

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

5

A142098

GROMMET

GASKET - rubber, valve cover nut

6шт.

6

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (See Ref 45)

12шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube, 3/16 x 5/16 x 11/16 inch (5 x 8 x 2 mm)

3шт.

8

A166147

GASKET

- water manifold

3шт.

9

A166148

GASKET

- thermostat housing

1шт.

10

A58662

MANIFOLD GASKET

- intake manifold

6шт.

11

A58895

GASKET

- exhaust manifold

6шт.

12

A58892

GASKET,1.59mm Thk

- turbocharger drain tube

6шт.

13

A58899

GASKET,0.45mm Thk

- turbocharger base

2шт.

14

A58910

GASKET

- air intake elbow

1шт.

15

1342829C1

GASKET

WASHER - injection nozzle (Not used this application); Replaces A76640

6шт.

16

A138817

RING,2.64mm Thk

SEAL - exhaust (Not used this application)

1шт.

17

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger (Not used this application)

1шт.

A44075

GASKET KIT

- cylinder block, Includes: Ref. 20 - 33

1шт.

For complete engine overhaul order A157300, A44075, A152479 and M20614. Reference numbers in description are for CARES use only and can not be ordered separately.

1шт.

20

A58612

GASKET

- timing gear cover

1шт.

21

A32830

GASKET

- rear oil seal retainer

1шт.

22

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

23

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

24

A58613

SEALING WASHER

GASKET - timing cover plug

1шт.

25

A58649

GASKET

- water pump body

1шт.

26

A58646

GASKET

- water pump

1шт.

27

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil pump, 15/16 x 1-1/8 x 3/32 inch (24 x 29 x 2 mm)

3шт.

28

A58615

GASKET

- injection pump drive cover

1шт.

29

A58617

GASKET

- auxiliary drive opening

1шт.

30

A58680

OIL PAN GASKET SET

- heat exchanger tube (Not used this application)

1шт.

31

A58670

GASKET

- heat exchanger, Serial Range: tube-block

1шт.

32

A58756

OIL PAN GASKET SET

- filter base (Not used this application)

1шт.

33

A76656

GASKET

- water pump body (Not used this application)

1шт.

A152479

GASKET KIT

- oil pan, Includes: Ref. 36 - 40

1шт.

For complete engine overhaul order A157300, A44075, A152479 and M20614. Reference numbers in description are for CARES use only and can not be ordered separately.

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan to block (Reference no. A150688)

1шт.

37

A27968

RING

- drain plug

1шт.

A152424

GASKET

KIT - rear seal

1шт.

38

A150690

OIL PAN GASKET SET

- corner

2шт.

39

A150689

GASKET

- flywheel housing

1шт.

40

A57966

GASKET

- lower

1шт.

45

M20614

SEAL KIT

SEAL KIT - valve stem (Includes 4 seals and sleeve)

3шт.
