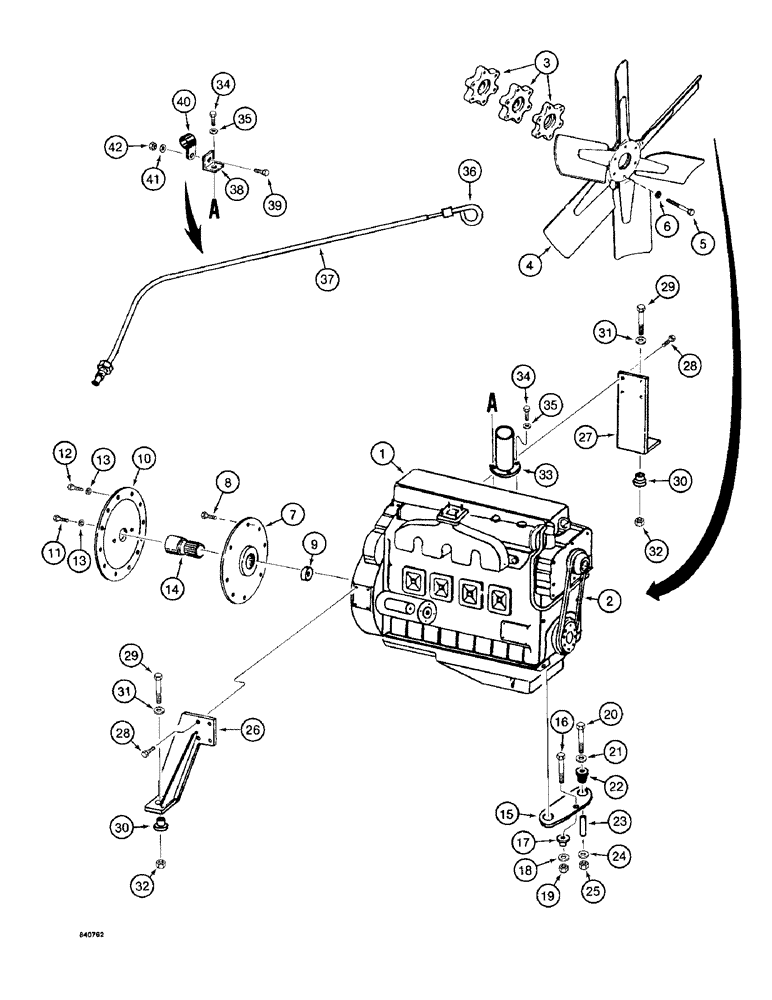

Запчасти Case 1187 (024) - DETROIT DIESEL ENGINE MOUNTING AND ADAPTING PARTS (01) - ENGINE

1

REF

INSTRUCTION

ENGINE - Detroit Diesel 4-71, for service see an authorized Detroit Diesel Allison service outlet

1шт.

L31230

ELEMENT

- oil filter, not shown

1шт.

L31230 is a Drop In element

1шт.

A19579

ELEMENT

- fuel strainer, not shown

1шт.

A19578

ELEMENT

- fuel filter, not shown

1шт.

2

S82985

V-BELT,36.70" L

BELT , Alternator and fan 36.70" L

1шт.

Is not a set of belts, it is one belt.

1шт.

3

S97540

FAN

SPACER - fan

3шт.

4

S516416

FAN

PUSHER FAN - engine cooling

1шт.

5

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

6шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

7

S618519

DAMPER

PLATE - dampener, pump drive

1шт.

8

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- special, self-locking, 3/8" - 16 NC x 5/8"

8шт.

9

S114980

ADAPTER

- flywheel to dampener plate

1шт.

10

S52615

MOUNTING PARTS

MOUNTING PLATE - hydraulic pump

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

14

S242024

COUPLING

- pump drive shaft

1шт.

15

S235139

SUPPORT

BRACKET - front engine support

1шт.

16

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

17

S118529

SPACER

- engine, Serial Range: support-frame

1шт.

18

195-2270

WASHER,13/16" x 3" x .238", HDN

- special, 13/16" ID x 3" OD

1шт.

19

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

20

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex head, 5/8" - 11 NC x 4-1/2"

2шт.

21

195-2270

WASHER,13/16" x 3" x .238", HDN

- upper, special, 13/16" ID x 3" OD

2шт.

22

A19066

MOUNTING PARTS

MOUNT - rubber

2шт.

23

S113788

SPACER

- bolt thru rubber mount

2шт.

24

S113789

WASHER

- lower, special, 21/32" ID x 4-1/4" OD

2шт.

25

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

26

S506059

BRACKET

- right-hand rear, engine mounting

1шт.

27

S506055

BRACKET

- left-hand rear, engine mounting

1шт.

28

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

29

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/4"

2шт.

30

A19066

MOUNTING PARTS

INSULATOR - rubber

2шт.

31

195-2270

WASHER,13/16" x 3" x .238", HDN

- special, lower, 13/16" ID x 3" OD

2шт.

32

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

33

S230325

LINE,6.5" L

FLANGE - air inlet

1шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

35

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

36

S516715

DIPSTICK

- engine oil level

1шт.

37

S516713

TUBE ASSY.,0.5" OD

TUBE - oil dipstick

1шт.

38

S120070

ANGLE

BRACKET - tube to air intake

1шт.

39

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

40

S77322

CLAMP

-, Serial Range: tube-bracket

1шт.

41

195-521

WASHER,5/16", SAE

- flat, 5/16"

1шт.

42

131-464

LOCK NUT,5/16"-18, G8

NUT - hex, self-locking, 5/16" - 18 NC

1шт.
