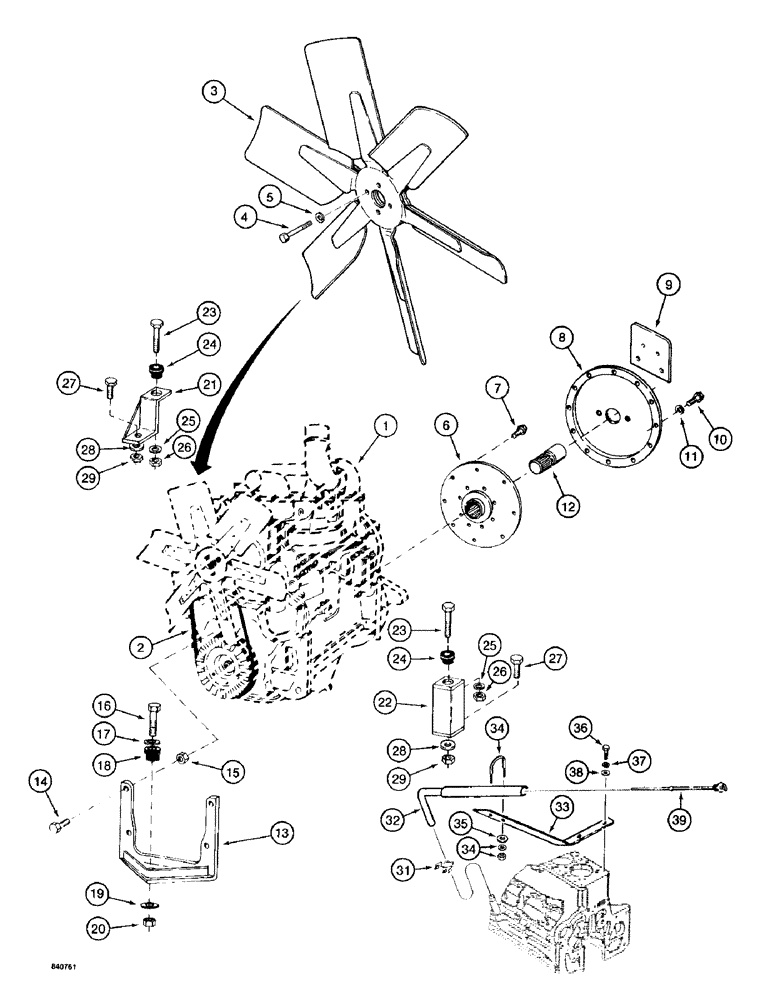

Запчасти Case 1187 (022) - CASE ENGINE MOUNTING AND ADAPTING PARTS (01) - ENGINE

1

REF

INSTRUCTION

ENGINE - Case 504BDT diesel, parts list Figures 26-54 and 60-78

1шт.

2

A59296

SET OF BELTS,0.69" W x 60.00" L

SET OF 2 BELTS , Matched, Fan and alternator 0.69" W x 60.00" L

1шт.

3

S231769

FAN

PUSHER FAN - engine cooling

1шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

S515001

DRIVE PLATE

PLATE - drive

1шт.

7

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- special, self-locking, 3/8" - 16 NC x 5/8"

8шт.

8

S52615

MOUNTING PARTS

MOUNTING PLATE - hydraulic pump

1шт.

9

S238088

BRACKET

PLATE - relay mounting, see Figure 82 for relay

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

12

S229599

DRIVE SHAFT

COUPLING - pump drive shaft

1шт.

13

S240298

BRACKET

- front engine mounting

1шт.

14

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

15

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

16

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

17

195-45

WASHER,3/4"

Upper 3/4"

1шт.

18

S112578

MOUNTING PARTS

INSULATOR - rubber

1шт.

19

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4", special, lower

1шт.

20

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

1шт.

21

S240379

BRACKET

- right-hand rear, engine mounting

1шт.

22

S232820

BRACKET

- left-hand rear, engine mounting

1шт.

23

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex head, 3/4" - 10 NC x 4-3/4"

2шт.

24

S112578

MOUNTING PARTS

INSULATOR - rubber

2шт.

25

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4" special, lower

2шт.

26

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

27

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

2шт.

28

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4", special

2шт.

29

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

30

345-84

ADHESIVE

SEALANT - extension tube to engine, 3 oz. tube, not shown, oil dipstick, extension and mounting parts

1шт.

31

L47766

CLAMP

- oil dipstick extension, and mounting parts

1шт.

32

S618231

TUBE,26.1, 26.3" L

- oil dipstick extension, and mounting parts

1шт.

33

S516455

BRACKET

- extension tube to block, oil dipstick and mounting parts

1шт.

34

R11500

CLAMP

- extension to bracket, includes hardware, oil dipstick, extension and mounting parts

1шт.

35

195-518

WASHER,1/4", SAE

- flat, 1/4", oil dipstick, extension and mounting parts

2шт.

36

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

- hex head, 1/2" - 13 NC x 1", oil dipstick, extension and mounting parts

2шт.

37

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Oil dipstick, extension and mounting parts 1/2"

2шт.

38

195-530

WASHER,7/16"

- flat, 1/2", oil dipstick, extension and mounting parts

2шт.

39

A155633

DIPSTICK

- oil level, extension and mounting parts

1шт.
