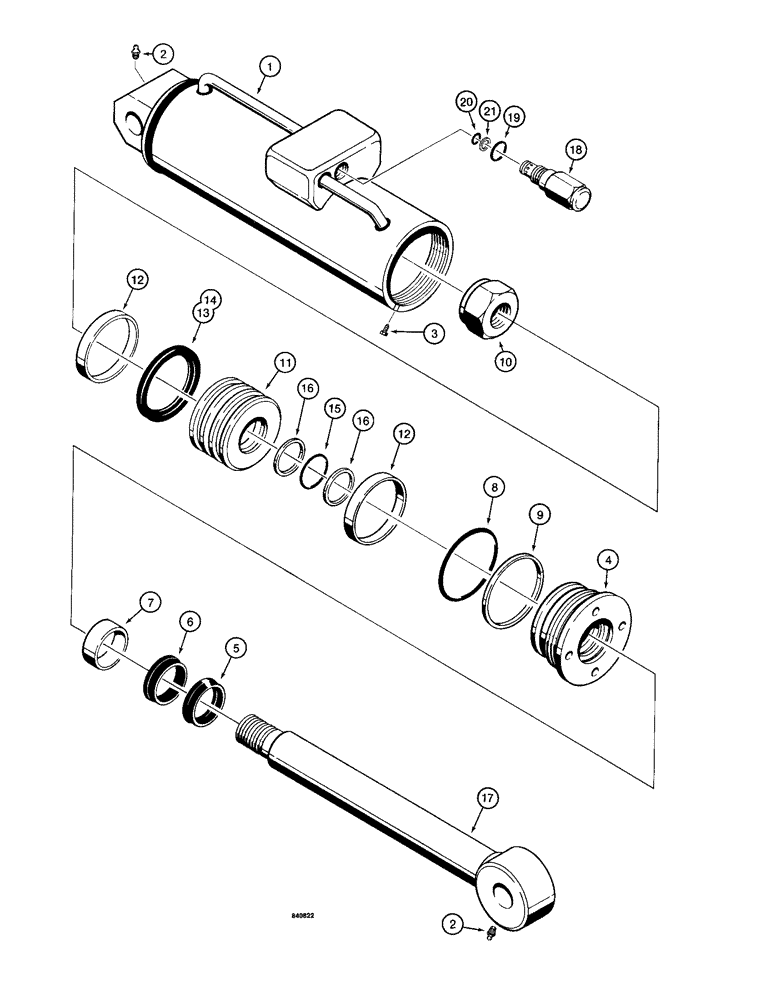

Запчасти Case 1187 (278) - COLLECTOR ARM CYLINDER (07) - HYDRAULIC SYSTEM

S615490

CYLINDER

- hydraulic, collector arm, Includes: Ref. 1 - 21

1шт.

1

S615491

CYLINDER,3.504" ID x 15.75, 3" L

TUBE - cylinder

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

3

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, no. 8 - 32 NC x 3/8"

1шт.

4

S514645

GLAND

- piston packing

1шт.

5

A13892

RING

WIPER - piston rod

1шт.

6

D36970

CUP

SEAL - piston rod, "U" cup

1шт.

7

S239098

RING

- wear, piston rod

1шт.

8

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- gland to cylinder

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

BACKUP RING - gland o-ring

1шт.

10

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

11

S514644

PISTON

- cylinder

1шт.

12

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

S239097

SEAL

SEAL ASSEMBLY - piston, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

14

NSS

NOT SOLD SEPARAT

EXPANDER - piston seal

1шт.

15

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- piston rod to piston

1шт.

16

L30563

RING

BACKUP RING - rod o-ring

2шт.

17

S514641

ROD ASSY.

ROD - piston

1шт.

18

S239119

VALVE

RELIEF VALVE - collector cylinder, Includes: Ref. 19 - 21

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large

1шт.

20

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

1шт.

21

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - small o-ring

1шт.
