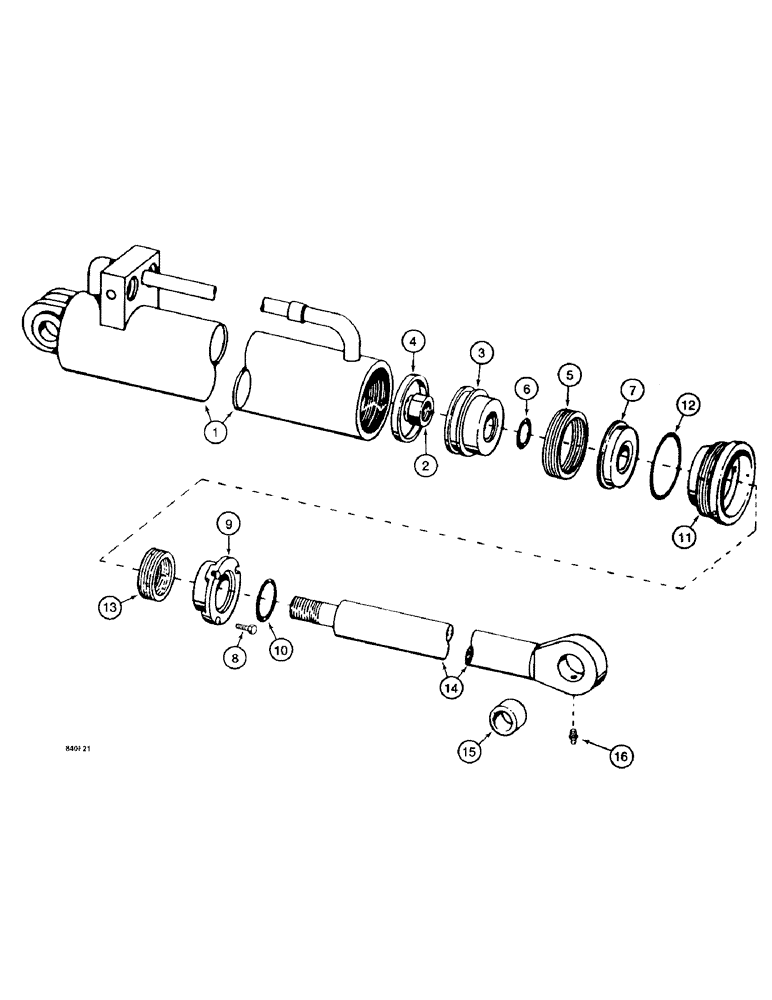

Запчасти Case 1187 (276) - GRAB ARM AND CUTTER ARM CYLINDER, USED WITH FELLER BUNCHER AND ROTARY CUTTER (07) - HYDRAULIC SYSTEM

S601368

CYLINDER

- hydraulic, grab arm and cutter arm, Includes: Ref. 1 - 16

2-3шт.

1

S504947

TUBE - cylinder 13.12, 5.85" L

1шт.

2

131-24

NUT,7/8"-14, GB

NUT - hex, self-locking, 1-1/2" - 12 NF

1шт.

3

S29909

PISTON - cylinder, nut end

1шт.

4

S29914

RING

- wear, piston

1шт.

5

S29913

SEAL

PACKING - piston, "V" ring

1шт.

6

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- piston

1шт.

7

S29911

RETAINER - piston packing

1шт.

8

165-133

HEX SOC SCREW,Prev Torque, 3/8" - 24 x 1"

CAP SCREW - hex socket head, self-locking, 3/8" - 24 NF x 1"

3шт.

9

S200834

FLANGE

- gland packing

1шт.

10

S22940

WIPER SEAL

WIPER - piston rod

1шт.

11

S202417

HEAD (CYLINDER)

GLAND - cylinder packing

1шт.

12

S5943

O-RING,4.6" ID x 0.21" Width

- gland

1шт.

13

S28515

PACKING

- gland, "V" ring

1шт.

14

S205819

PISTON ROD

ROD - piston, Includes: Ref. 15

1шт.

15

S23796

BUSHING

- piston rod

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.
