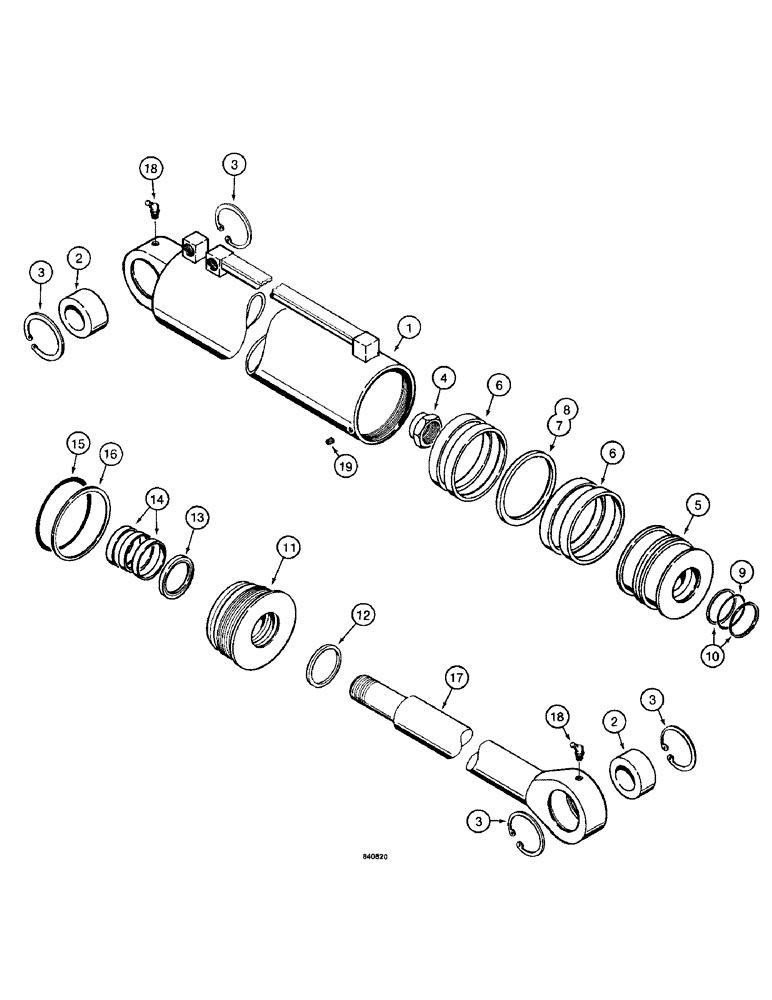

Запчасти Case 1187 (274) - SHEAR ARM CYLINDER (07) - HYDRAULIC SYSTEM

S615305

CYLINDER ASSY.

CYLINDER - hydraulic, shear arm, Includes: Ref. 1 - 19

1шт.

1

S615306

TUBE ASSY.,6.53" ID x 36.25, 4.73" L

TUBE - cylinder

1шт.

2

R26680

SPHERICAL BEARING,63.5mm ID x 100.01mm OD x 55.6mm W

- self-aligning, at rod eye and base end of cylinder

2шт.

3

A55435

SNAP RING,3.938", Int, #393

RING, Snap, , bushing 3.938", Int, #393

4шт.

4

S83249

NUT

- lock, special

1шт.

5

S514538

PISTON

- cylinder

1шт.

6

S97856

RING

- wear, piston

4шт.

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL ASSEMBLY - piston, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - seal expander

1шт.

9

S6328

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

-, Serial Range: piston-rod

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - piston o-ring

2шт.

11

S514539

GLAND

- piston rod packing

1шт.

12

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

13

S118038

SEAL

- piston rod

1шт.

14

S104133

OIL SEAL

RING - wear, gland

3шт.

15

S6030

O-RING,5.975" ID x 6.525" OD x 0.275"

- gland to tube

1шт.

16

S99881

WASHER

BACKUP RING - seal

1шт.

17

S514508

ROD ASSY.

ROD - piston, cylinder

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

19

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, no. 8 - 32 NC x 3/8"

1шт.
