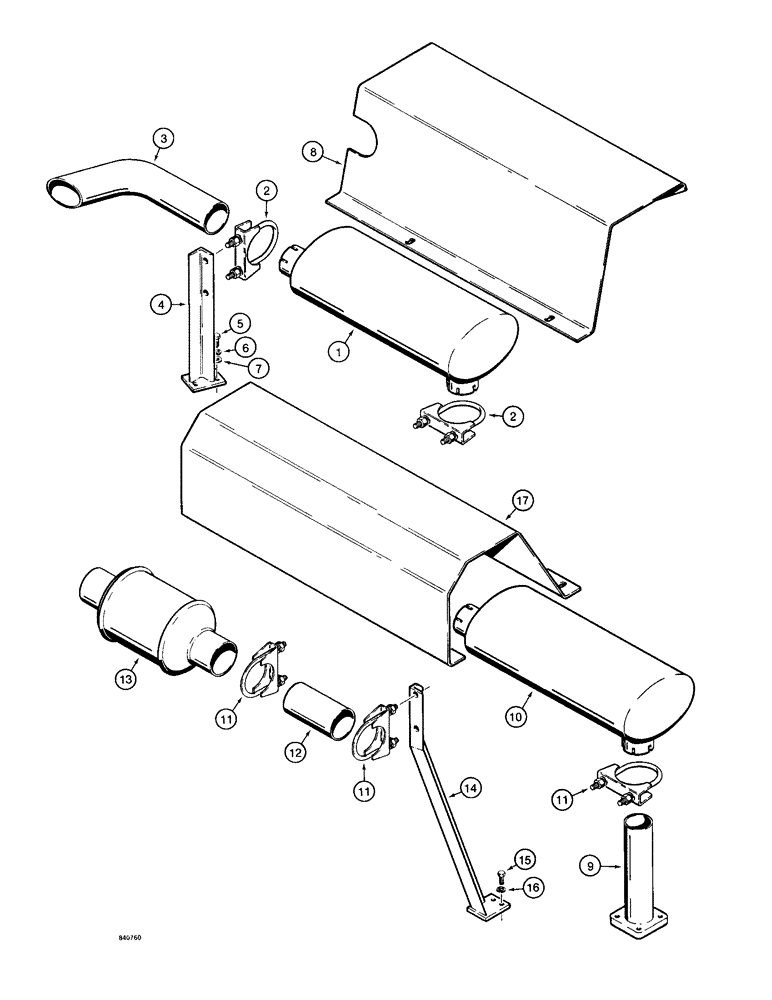

Запчасти Case 1187 (020) - MUFFLER AND EXHAUST SYSTEM (01) - ENGINE

1

S231674

MUFFLER

- engine exhaust, used with case

1шт.

2

L12413

CLAMP

- muffler to pipe, used with case engine

2шт.

3

S99158

ELBOW

PIPE - exhaust, used with case

1шт.

4

S234041

BRACKET

SUPPORT - muffler, at engine, used with case

1шт.

5

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

Parts used with Case engine Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Parts used with Case engine 3/8"

2шт.

7

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, parts used with case engine

2шт.

8

S618249

GUARD

- muffler, used with case engine

1шт.

9

S233625

FLANGE ASSY

EXTENSION - exhaust, at engine, used with detroit diesel

1шт.

10

S231674

MUFFLER

- engine exhaust, used with detroit diesel

1шт.

11

L12413

CLAMP

- muffler to extension and support, used with detroit diesel engine

3шт.

12

S99869

PIPE, EXHAUST SYSTEM

PIPE - extension, muffler to spark arrester, used with detroit diesel engine

1шт.

13

S226198

SPARK ARRESTER

- engine, used with detroit diesel

1шт.

14

S236379

BRACKET

SUPPORT - muffler, at engine, used with detroit diesel

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used with Detroit diesel engine Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with Detroit diesel engine 3/8"

2шт.

17

S516078

GUARD

- muffler, used with detroit diesel engine

1шт.
