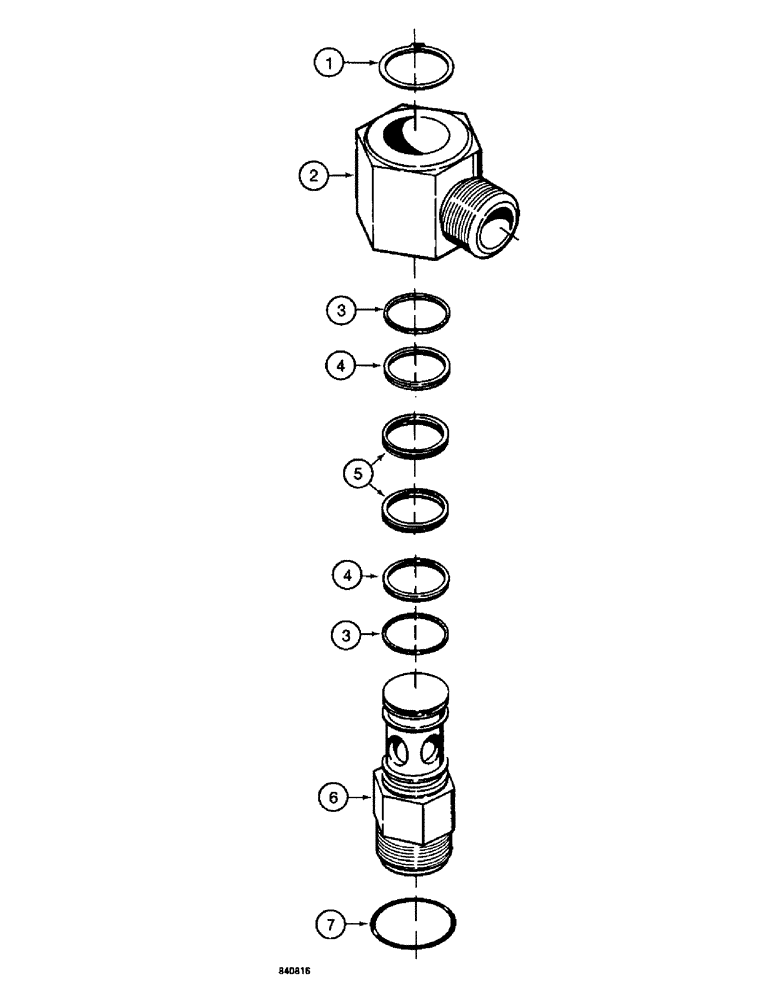

Запчасти Case 1187 (258) - LOWER SWIVEL, ROTARY CUTTER MOTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

S230048

PIVOT

SWIVEL ASSEMBLY - hydraulic, lower, Includes: Ref. 1 - 7

2шт.

1

S110526

RING

RETAINING RING - swivel shaft

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - hydraulic swivel

1шт.

S233450

KIT

- seal, swivel shaft, Includes: Ref. 3 - 5

1шт.

3

S110525

SEAL

- leather, outer

2шт.

4

S110524

WASHER

BACKUP RING - Teflon

2шт.

5

S110523

RING

QUAD RING - inner

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - hydraulic swivel

1шт.

7

S110527

O-RING

- swivel shaft

1шт.
