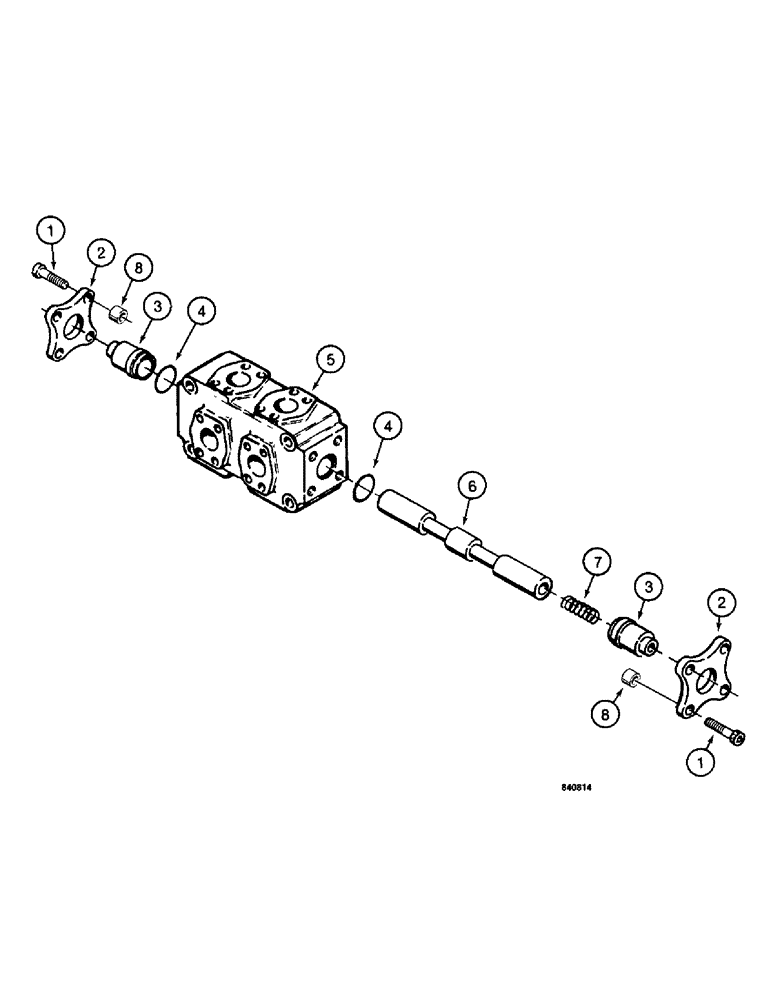

Запчасти Case 1187 (254) - DIVERTER VALVE, USED WITH ROTARY CUTTER (07) - HYDRAULIC SYSTEM

S509951

VALVE

ASSEMBLY - diverter, rotary cutter, Includes: Ref. 1 - 8

1шт.

1

61-832

HEX SOC SCREW,1/2"-13 x 2"

CAP SCREW - hex socket head, 1/2" - 13 NC x 2"

8шт.

2

S110444

PLATE

- spool cap retainer

2шт.

3

S110441

CAP

- spool

2шт.

4

S6587

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- spool cap

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - diverter valve

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - diverter valve

1шт.

7

S110443

SPRING

- valve spool

1шт.

8

S117495

SPACER

- retainer plate

8шт.
