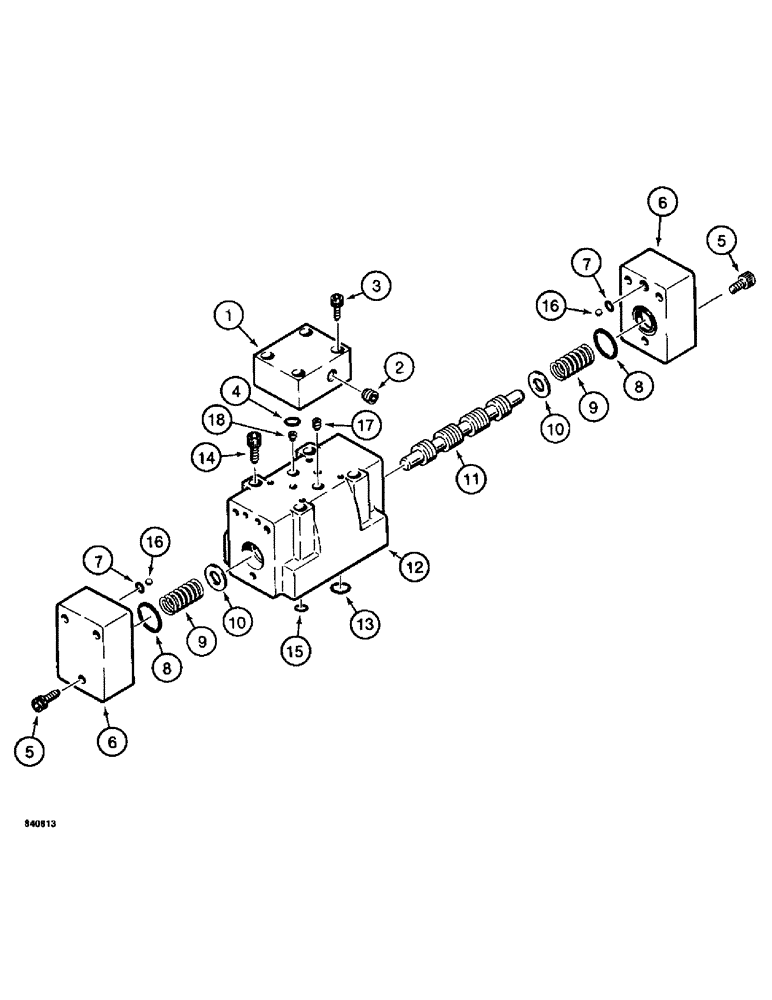

Запчасти Case 1187 (252) - DIRECTIONAL VALVE, USED WITH ROTARY CUTTER (07) - HYDRAULIC SYSTEM

S509950

VALVE

ASSEMBLY - directional, Includes: Ref. 1 - 18

1шт.

1

S110421

BLOCK

- adapter

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex socket head, 1/8" NPT

2шт.

3

165-24

HEX SOC SCREW,#10 - 24 x 7/8"

CAP SCREW - hex socket head, no. 10-24 NC x 7/8"

4шт.

4

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- adapter block

4шт.

5

61-420

HEX SOC SCREW,1/4"-20 x 1 1/4"

CAP SCREW - hex socket head, 1/4" - 20 NC x 1-1/4"

6шт.

6

S110426

CAP

- end, valve

2шт.

7

S5602

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

- cap, small

2шт.

8

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- cap, large

2шт.

9

S110432

SPRING

- spool centering

2шт.

10

S110433

WASHER

- spring retaining

2шт.

11

S110429

SPOOL

- valve

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

13

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- valve body, large

5шт.

14

61-424

HEX SOC SCREW,1/4"-20 x 1 1/2"

CAP SCREW - hex socket head, 1/4" - 20 NC x 1-1/2"

4шт.

15

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- valve body, small

2шт.

16

211-204

BALL

- steel, 3/16" diameter

2шт.

17

178-413

SET SCREW,Hex Soc, #10-24 x 1/4"

- hex socket head, no. 10-24 NC x 1/4"

1шт.

18

178-412

SET SCREW,Hex Soc, #10-24 x 3/16"

- hex socket head, no. 10-24 NC x 3/16"

1шт.
