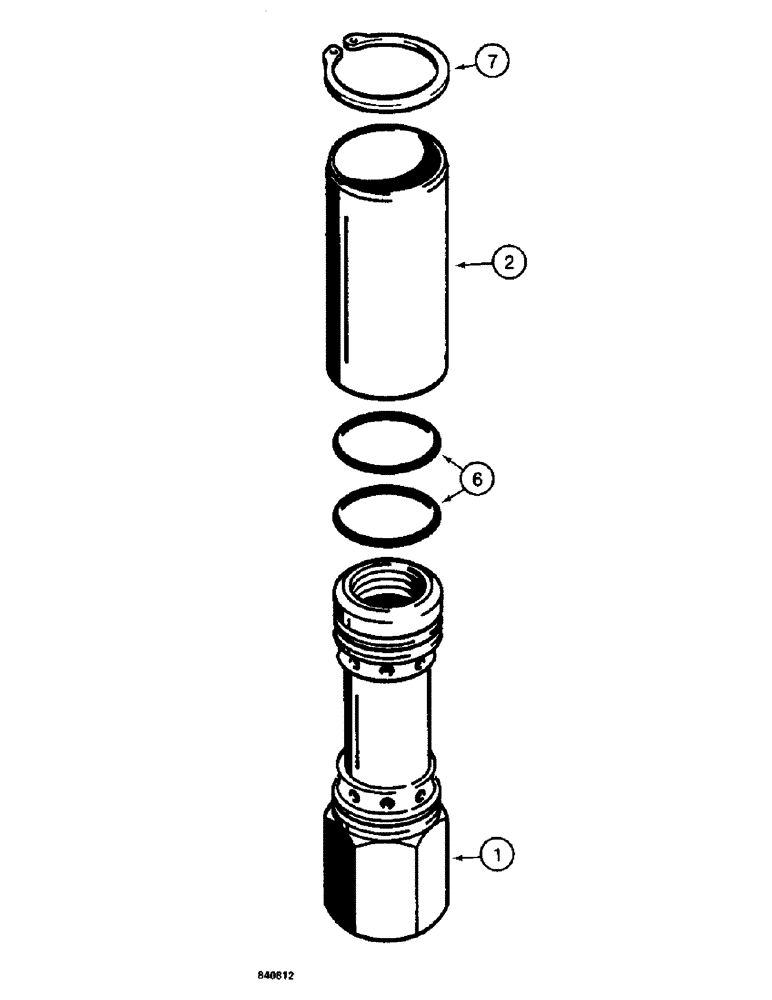

Запчасти Case 1187 (250) - FLOW CONTROL VALVE, USED WITH ROTARY CUTTER (07) - HYDRAULIC SYSTEM

S229047

VALVE

ASSEMBLY - flow control, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, flow control

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - valve, not shown

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - valve, not shown

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - internal, not shown

1шт.

6

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

-, Serial Range: sleeve-body

2шт.

7

D46211

SNAP RING,#78, Ext

RING, Snap, #78, Ext

1шт.
