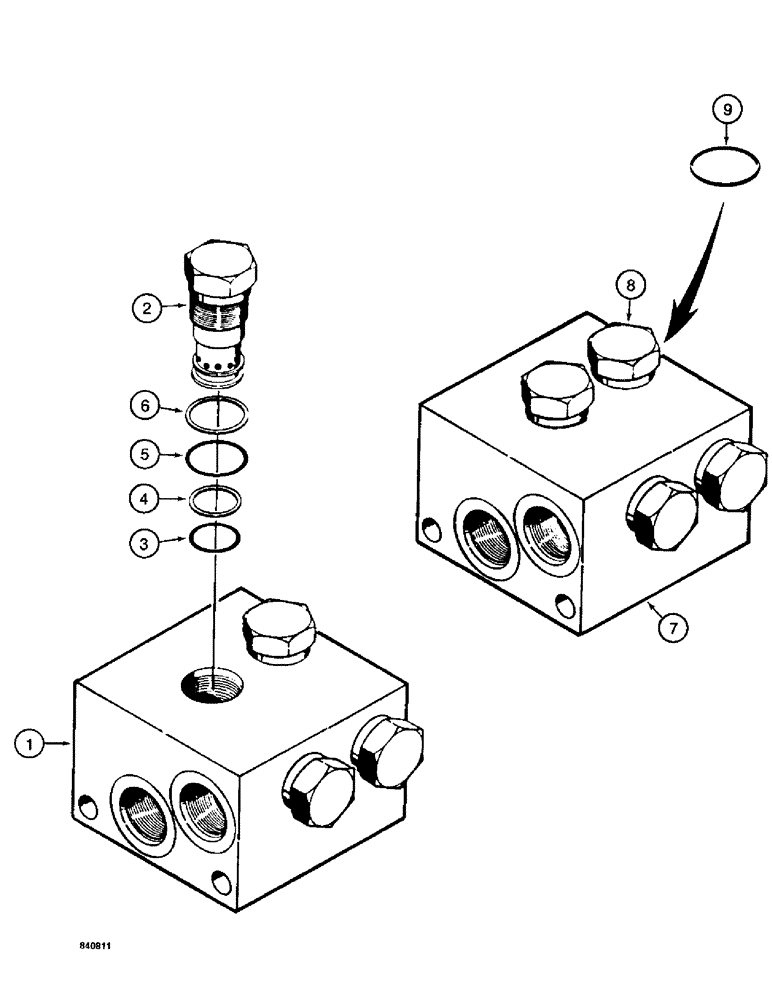

Запчасти Case 1187 (248) - MULTIPLE CHECK VALVE, USED WITH COLLECTOR (07) - HYDRAULIC SYSTEM

S607153

VALVE

ASSEMBLY - multiple check, Sun Hydraulic manufactured, Includes: Ref. 1 - 6

1шт.

Check the valve body for identification as to Sun Hydraulic or Fluid Controls manufactured.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

S107625

CARTRIDGE

ASSEMBLY - check valve, Includes: Ref. 2 - 6

4шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

3

A153571

O-RING,0.799" ID x 1.005" OD x 0.103"

- cartridge, small

1шт.

Part of seal kit S109023

1шт.

4

A16860

RING

BACKUP RING - small o-ring

1шт.

Part of seal kit S109023

1шт.

5

N9096

O-RING,0.674" ID x 7" OD x 0.103" Width

- cartridge, large

1шт.

Part of seal kit S109023

1шт.

6

A42252

SEALING RING

BACKUP RING - large o-ring

1шт.

Part of seal kit S109023

1шт.

S607153

VALVE

ASSEMBLY - multiple check, Fluid Controls manufactured, Includes: Ref. 7 - 9

1шт.

Check the valve body for identification as to Sun Hydraulic or Fluid Controls manufactured.

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - check valve body

4шт.

9

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- plug

4шт.

S109023

SEAL KIT

KIT - seal, cartridge, Includes: Ref. 3, 4, 5, and 6

1шт.
