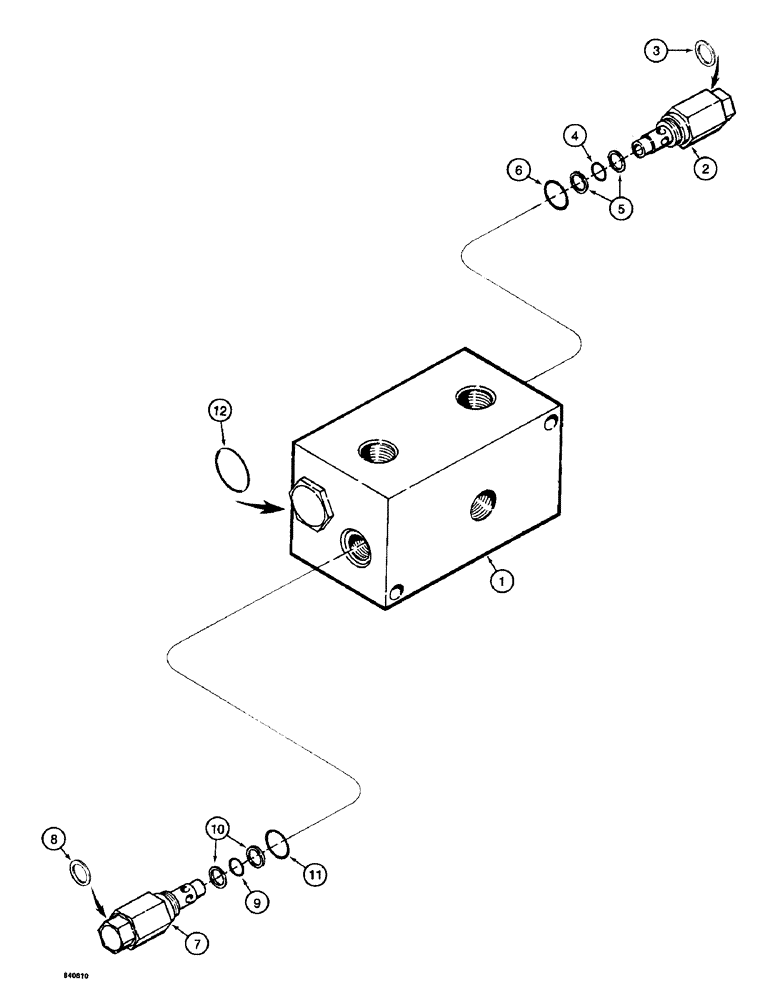

Запчасти Case 1187 (240) - DUAL RELIEF VALVE, USED WITH ROTARY CUTTER (07) - HYDRAULIC SYSTEM

S510454

VALVE ASSEMBLY - dual relief, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

S110253

CARTRIDGE

RELIEF VALVE ASSEMBLY - cartridge type, set at 2500 PSI, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

3

S118310

GASKET

- cartridge cap

1шт.

4

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- cartridge, small

1шт.

5

S116423

RING, SNAP

BACKUP RING - o-ring

2шт.

6

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- cartridge, large

1шт.

S117914

CARTRIDGE

RELIEF VALVE ASSEMBLY - cartridge type, set at 1700 PSI, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

8

S118310

GASKET

- cartridge cap

1шт.

9

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- cartridge, small

1шт.

10

S116423

RING, SNAP

BACKUP RING - o-ring

2шт.

11

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- cartridge, large

1шт.

12

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- plug, replace if required for leakage

1шт.

The plug, poppet and spring which are removed to replace the o-ring are NSS Refs.

1шт.
