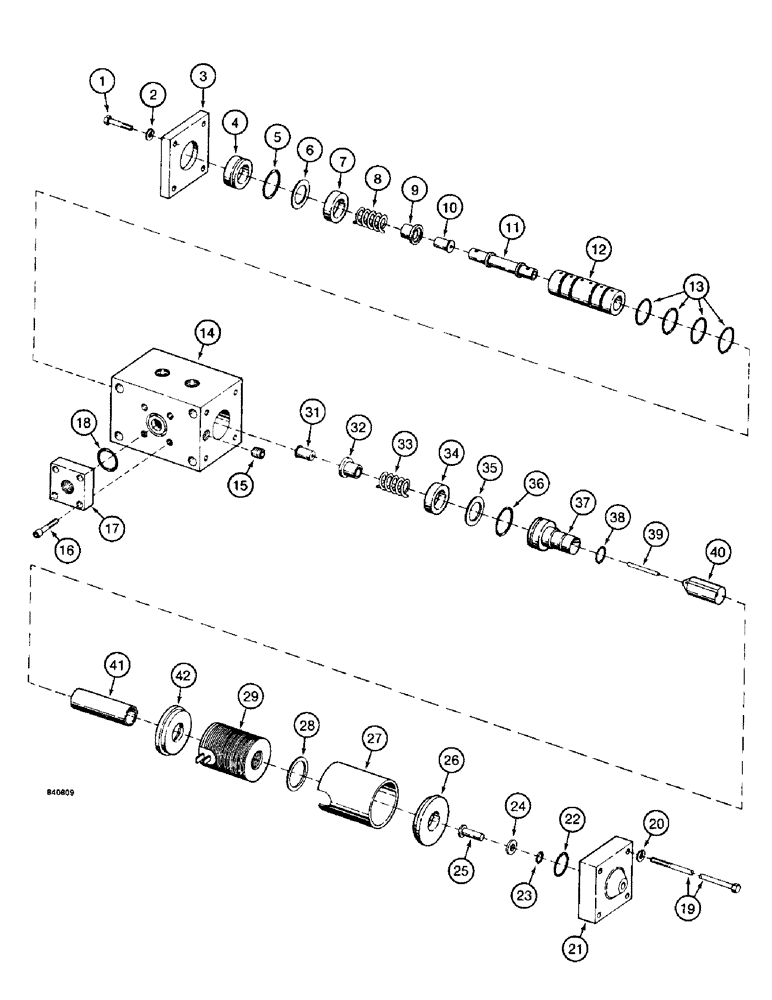

Запчасти Case 1187 (236) - SOLENOID VALVE, USED WITH COLLECTOR (07) - HYDRAULIC SYSTEM

S516409

VALVE

SOLENOID VALVE ASSEMBLY - collector, 24 volt, Includes: Ref. 1 - 42

1шт.

1

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

3

S64604

PLATE

COVER - end, valve block

1шт.

4

S64716

STOP

- spool travel

1шт.

5

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

- spool stop

1шт.

6

S95751

WASHER

- special, spring

1шт.

7

S95750

SPACER

- spool spring

1шт.

8

S64670

SPRING

- spool return

1шт.

9

S95745

SUPPORT

SLEEVE - spring centering

1шт.

10

S95743

CAP

- spool end

1шт.

11

S64989

SPOOL

- solenoid valve

1шт.

12

S64991

SLEEVE

- spool

1шт.

13

D54165

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- spool sleeve

4шт.

14

S64610

BLOCK - valve spool

1шт.

15

S65076

PLUG

- pipe, special

1шт.

16

165-144

BOLT,5/16" - 18 x 3/4"

CAP SCREW - hex socket head, 5/16" - 18 NC x 3/4"

4шт.

17

S64715

ADAPTER

- valve block port

1шт.

18

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- adapter

1шт.

19

113-179

BOLT,Hex, 5/16" - 18 x 5", Gr 5

Hex, 5/16"-18 x 5", G5

4шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

21

S64552

COVER

- end, solenoid coil

1шт.

22

D54165

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- end cover, large

1шт.

23

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- end cover, small

1шт.

24

S64613

BUSHING

RETAINER - o-ring

1шт.

25

S64603

PIN

STOP - plunger

1шт.

26

S64551

CAP

- end, coil housing

1шт.

27

S64550

HOUSING

- solenoid coil

1шт.

28

S64609

WASHER

- spring, special

1шт.

29

S112701

COIL

- plunger, solenoid, 24 volt

1шт.

30

S111603

TERMINAL CONNECTOR

TERMINAL - coil, not shown

2шт.

S106709

TUBE

ASSEMBLY - plunger, Includes: Ref. 31 - 42

1шт.

31

S95743

CAP

- spool end

1шт.

32

S95745

SUPPORT

SLEEVE - spring centering

1шт.

33

S64670

SPRING

- spool return

1шт.

34

S95750

SPACER

- spool spring

1шт.

35

S95751

WASHER

- spring, special

1шт.

36

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

- plunger seat, large

1шт.

37

S64672

SEAT

- plunger

1шт.

38

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- plunger seat, small

1шт.

39

S95742

ROD

PIN - plunger

1шт.

40

S64549

PLUNGER

- valve spool

1шт.

41

S64531

TUBE

- plunger

1шт.

42

S64671

RETAINER

- plunger seat

1шт.
