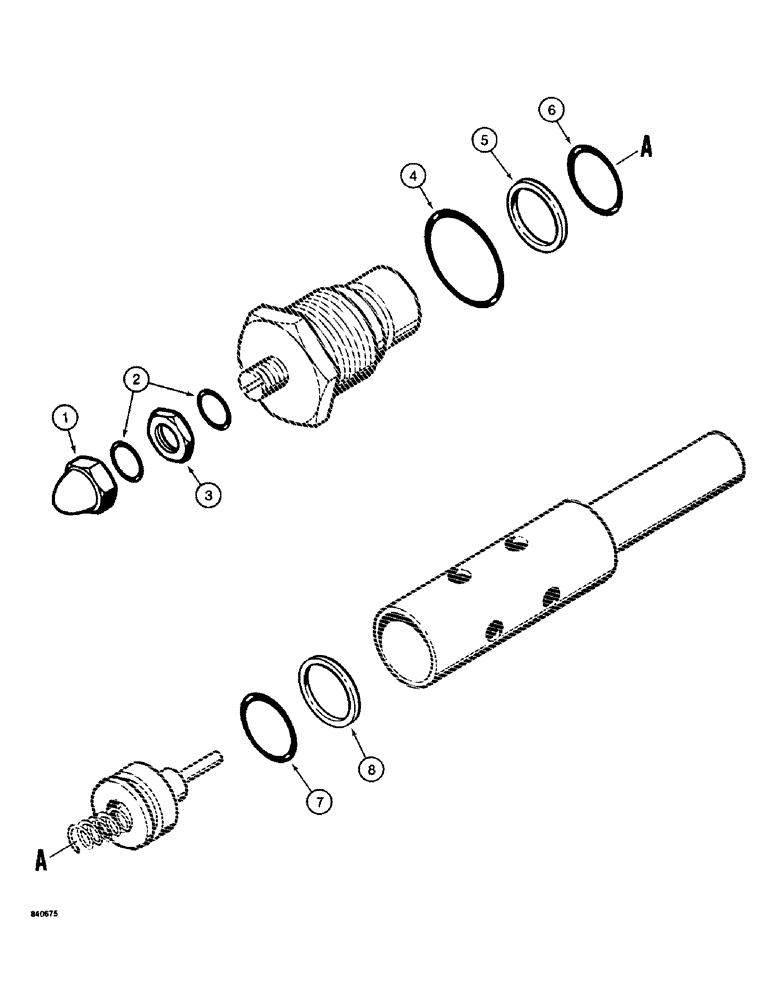

Запчасти Case 1187 (226) - MAIN RELIEF VALVE, USED WITH ONE SPOOL AND FOUR SPOOL (07) - HYDRAULIC SYSTEM

S62112

CARTRIDGE

MAIN RELIEF VALVE ASSEMBLY - one spool and four spool control valves, Includes: Ref. 1 - 8

1шт.

1

S116073

CAP

DOME NUT - relief valve

1шт.

2

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- adjusting screw nuts

2шт.

3

S116072

JAM NUT

JAM NUT - adjusting screw

1шт.

4

N8556

O-RING,1" ID x 1-1/4" OD x 1/8"

- cartridge, outer

1шт.

5

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

BACKUP RING - inner cartridge o-ring

1шт.

6

A64436

O-RING,0.549" ID x 0.755" OD

- cartridge, inner

1шт.

7

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

8

S84098

BACK-UP RING,1/2" ID x 11/16" OD

BACKUP RING - poppet o-ring

1шт.
