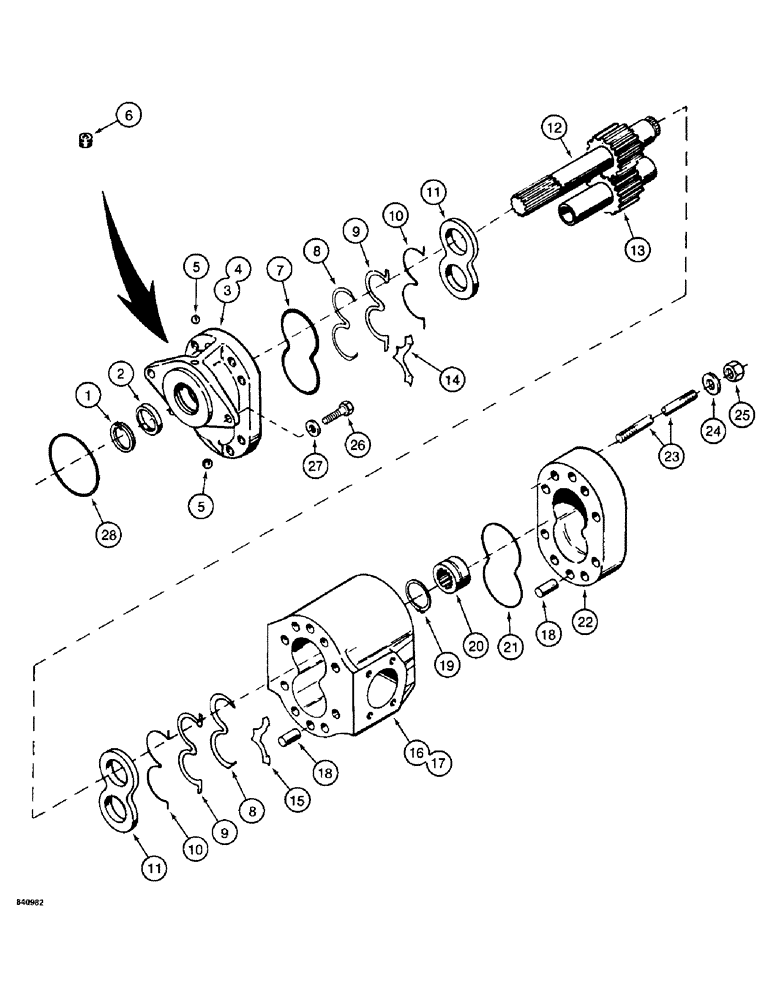

Запчасти Case 1187 (218) - S608925 MOTOR PUMP, USED WITH ROTARY CUTTER (07) - HYDRAULIC SYSTEM

S608925

MOTOR PUMP ASSEMBLY - rotary cutter, Includes: Ref. 1 - 25

1шт.

S233569

PUMP

ASSEMBLY - rotary cutter, parts list Figure 216

1шт.

S235757

MOTOR

ASSEMBLY - rotary cutter, Includes: Ref. 1 - 25

1шт.

1

D41419

RING

SNAP RING - seal retaining

1шт.

2

S98646

SEAL

- drive shaft

1шт.

S116431

FLANGE ASSY

COVER ASSEMBLY - motor, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - motor, front

1шт.

4

S109040

BUSHING

- cover, not shown

2шт.

5

NSS

NOT SOLD SEPARAT

BALL - motor cover

2шт.

6

L35776

PLUG

- motor cover

1шт.

7

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- cover to body

1шт.

8

S108490

OIL SEAL

SEAL - ring

2шт.

9

S108892

BACK-UP RING

BACKUP RING - seal

2шт.

10

S108891

SEAL

O-RING - wear plate

2шт.

11

S110653

PLATE

- wear

2шт.

S233572

GEAR SET - motor, with drive shaft, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

14

S108894

PLATE

- isolation, top

1шт.

15

S108893

PLATE

- isolation, bottom

1шт.

16

S233570

BODY

- motor, Includes: Ref. 17

1шт.

17

S109040

BUSHING

- motor body, not shown

2шт.

18

D41414

PIN

DOWEL PIN - motor body

2шт.

19

A36277

SNAP RING,1.125", Int, #112

coupling 1.125", Int, #112

1шт.

20

S110669

COUPLING

-, Serial Range: motor-pump

1шт.

21

L35782

O-RING,0.103" Thk x 4.487" ID, -157, Cl 6, 90 Duro

- motor body

1шт.

22

S110652

HOUSING

COVER AND MOUNTING PLATE -, Serial Range: motor-pump

1шт.

23

S110670

STUD

- retaining, pump body

8шт.

24

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened

8шт.

25

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8" - 18 NF

8шт.

26

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Mounts motor to rotary cutter Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

27

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened

2шт.

28

S6523

O-RING,-159, 90 Duro, 4.977" ID x .103" Thk

- motor flange to cutter frame

1шт.

S114268

KIT

- seal, includes reference numbers 2 and 7

1шт.
