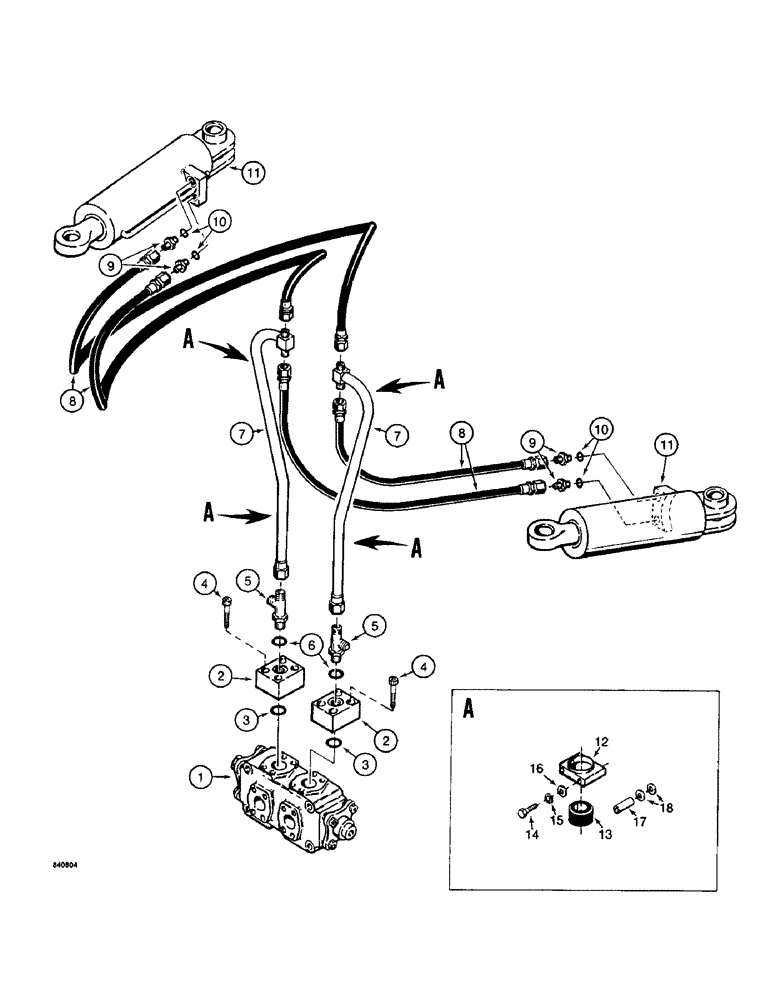

Запчасти Case 1187 (208) - ROTARY CUTTER HYDRAULICS, DIVERTER VALVE TO GRAB ARM CYLINDERS (07) - HYDRAULIC SYSTEM

1

S509951

VALVE

- diverter, parts list Figure 254

1шт.

2

S230041

FITTING

BLOCK - adapter, diverter valve

2шт.

3

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- adapter block

2шт.

4

61-832

HEX SOC SCREW,1/2"-13 x 2"

CAP SCREW - hex socket head, 1/2" - 13 NC x 1-1/2"

8шт.

5

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, see Figure 194 for hydraulics from main control valve, Includes: Ref. 6

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

7

S230160

TUBE ASSY.,1.25" OD x 28.5, 5" L

TUBE - diverter valve to cylinders

2шт.

8

S89942

HOSE

- diverter valve to cylinders, 50" (1270 mm) long

4шт.

9

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 10

4шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

11

S601368

CYLINDER

- hydraulic, grab arm, parts list Figure 276

2шт.

12

S106643

CLAMP

- tube

4шт.

13

S106646

BUSHING

- split, rubber

4шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

16

195-103

WASHER,5/16"

- flat, 3/8"

8шт.

17

S106647

TUBE NUT

NUT - special, tube clamp

8шт.

18

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, hardened, use as spacer

1шт.
