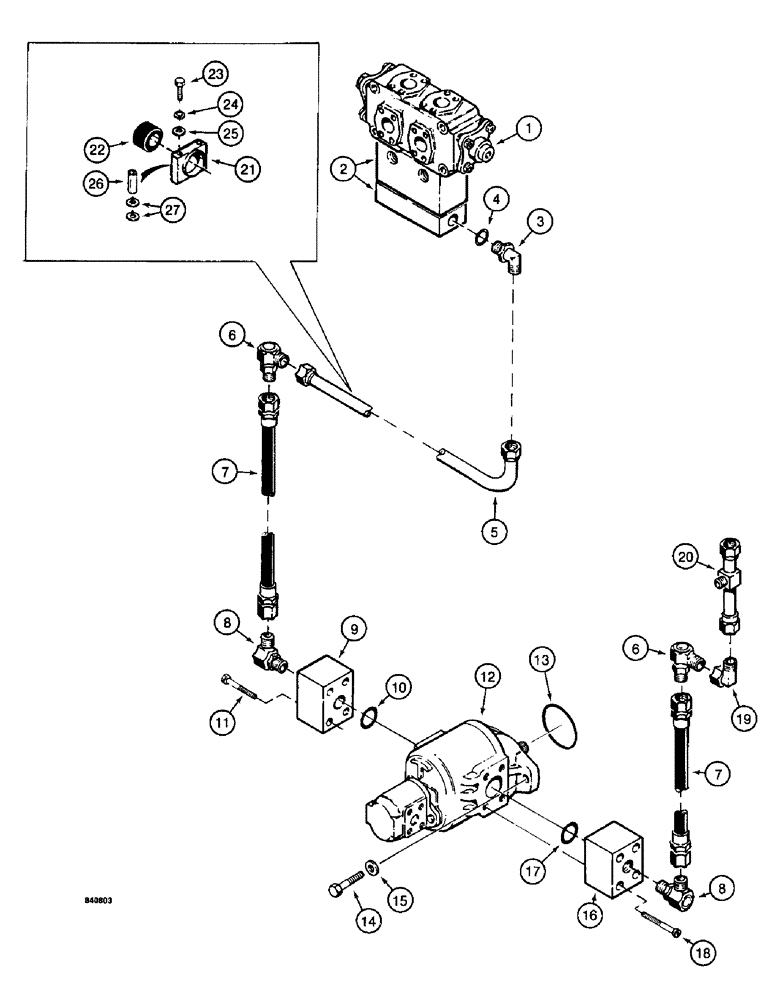

Запчасти Case 1187 (206) - ROTARY CUTTER HYDRAULICS, DIVERTER VALVE TO HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

1

S509951

VALVE

- diverter, parts list Figure 254

1шт.

2

REF

INSTRUCTION

BLOCK - adapter, see Figure 198 for blocks and related parts

2шт.

3

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- adjustable, 90 degree, Includes: Ref. 4

1шт.

4

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- seal

1шт.

5

S232040

TUBE,1.25" OD x 13.68, 5.06" L

- diverter valve to motor inlet

1шт.

6

S98795

ELBOW

SWIVEL ASSEMBLY - hydraulic, upper, parts list Figure 256

2шт.

7

S401551

HOSE ASSY.

HOSE - at motor, inlet and outlet, 25" (635 mm) long

2шт.

8

S230048

PIVOT

SWIVEL ASSEMBLY - hydraulic, lower, parts list Figure 258

2шт.

9

S230046

FITTING

BLOCK - adapter, inlet side of motor

1шт.

10

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- adapter block

1шт.

11

61-860

HEX SOC SCREW,1/2"-13 x 3 3/4"

CAP SCREW - hex socket head, 1/2"- 13 NC x 3-3/4"

4шт.

12

S608925

MOTOR PUMP ASSEMBLY - hydraulic, parts list Figures 216 and 218

1шт.

13

S6523

O-RING,-159, 90 Duro, 4.977" ID x .103" Thk

- pump mounting flange

1шт.

14

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

15

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, hardened, 5/8"

2шт.

16

S230047

FITTING

BLOCK - adapter, outlet side of motor

1шт.

17

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- adapter block

1шт.

18

61-864

CAPSCREW,1/2" - 13 x 4"

CAP SCREW - hex socket head, 1/2" - 13 NC x 4"

4шт.

19

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree

1шт.

20

S232057

LINE

TUBE - from outlet side of motor, see Figure 194 for hydraulics to main control valves

1шт.

21

S106643

CLAMP

-, Serial Range: tube-frame

1шт.

22

S106646

BUSHING

- split, rubber

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1"

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

195-103

WASHER,5/16"

- flat, 3/8"

2шт.

26

S106647

TUBE NUT

NUT - special, clamp

2шт.

27

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, use as spacer

1шт.
