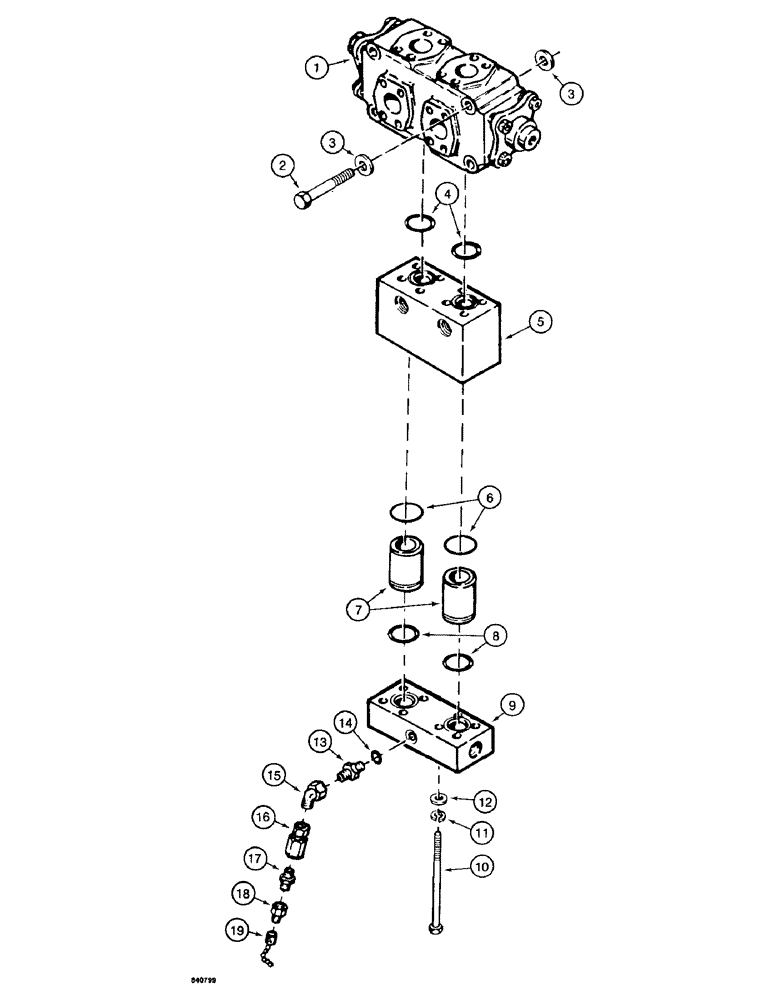

Запчасти Case 1187 (198) - ROTARY CUTTER HYDRAULICS, DIVERTER VALVE ADAPTER BLOCKS AND RELATED PARTS (07) - HYDRAULIC SYSTEM

1

S509951

VALVE

- diverter, parts list Figure 254

1шт.

2

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- hex head, 5/8" - 11 NC x 4-3/4"

4шт.

3

195-41

WASHER,5/8"

- flat, 5/8"

8шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- adapter block, at valve, 2-1/8" OD

2шт.

5

S511380

ADAPTER

BLOCK - adapter, upper

1шт.

6

D28965

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

- adapter block, upper, 2-5/16" OD

2шт.

7

S108792

CHECK VALVE - inside adapter block

2шт.

8

D27878

O-RING,1.609" ID x 1.887" OD

- adapter block, lower, 1-7/8" OD

2шт.

9

S511381

ADAPTER

BLOCK - adapter, lower

1шт.

10

113-2421

BOLT,Hex, 1/2" - 13 x 8", Gr 5

8шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

12

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

8шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

15

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- swivel, 45 degree

1шт.

16

S108815

ADAPTER

- special

1шт.

17

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

1шт.

18

S206607

DISC

ONNECT - male

1шт.

19

S206608

CAP

- dust, disconnect

1шт.
