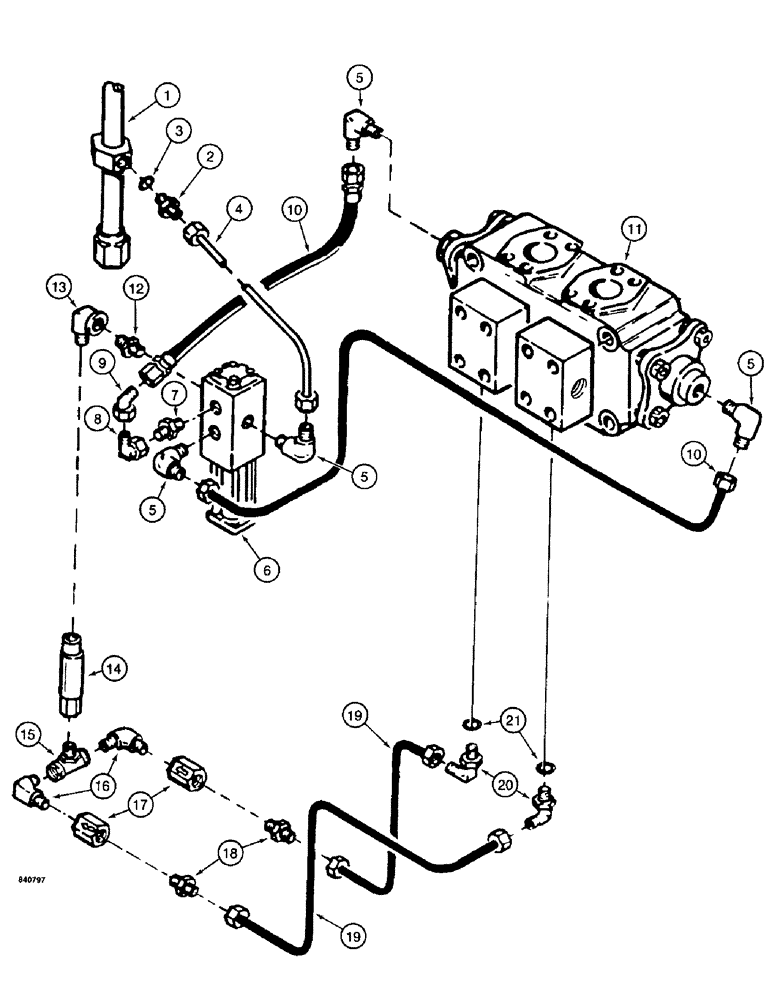

Запчасти Case 1187 (192) - ROTARY CUTTER HYDRAULICS, ROTARY CUTTER HYDRAULIC CONTROLS (07) - HYDRAULIC SYSTEM

1

S232121

TUBE ASSY.

TUBE - hydraulic, pressure, see Figure 194, Ref. no. 39, for tube in main control valve hydraulic circuit

1шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - male, straight, Incl. Ref. 3

1шт.

3

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter

1шт.

4

S232136

TUBE ASSY.,0.25" OD x 7.18, 1.78" L

TUBE - hydraulic, to solenoid valve

1шт.

5

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degree

4шт.

6

S516009

VALVE

- solenoid, parts list Figure 234

1шт.

7

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight

1шт.

8

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree

1шт.

9

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

1шт.

10

S77467

HOSE

- solenoid valve to diverter valve, 38" (965 mm) long

2шт.

11

S509951

VALVE

- diverter, parts list Figure 254

1шт.

12

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, - Male, Straight 1/4"-18 NPTF

1шт.

13

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

14

S229047

VALVE

- flow control

1шт.

15

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

- at flow control valve

1шт.

16

217-1225

ELBOW,90 Degree, 1/4"-18 Male

- 90 degree

2шт.

17

S110789

VALVE

- check

2шт.

18

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, straight

2шт.

19

S77121

HOSE

- check valve to diverter valve, 20" (508 mm) long

2шт.

20

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- adjustable, 90 degree, Incl. Ref. 21

2шт.

21

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.
