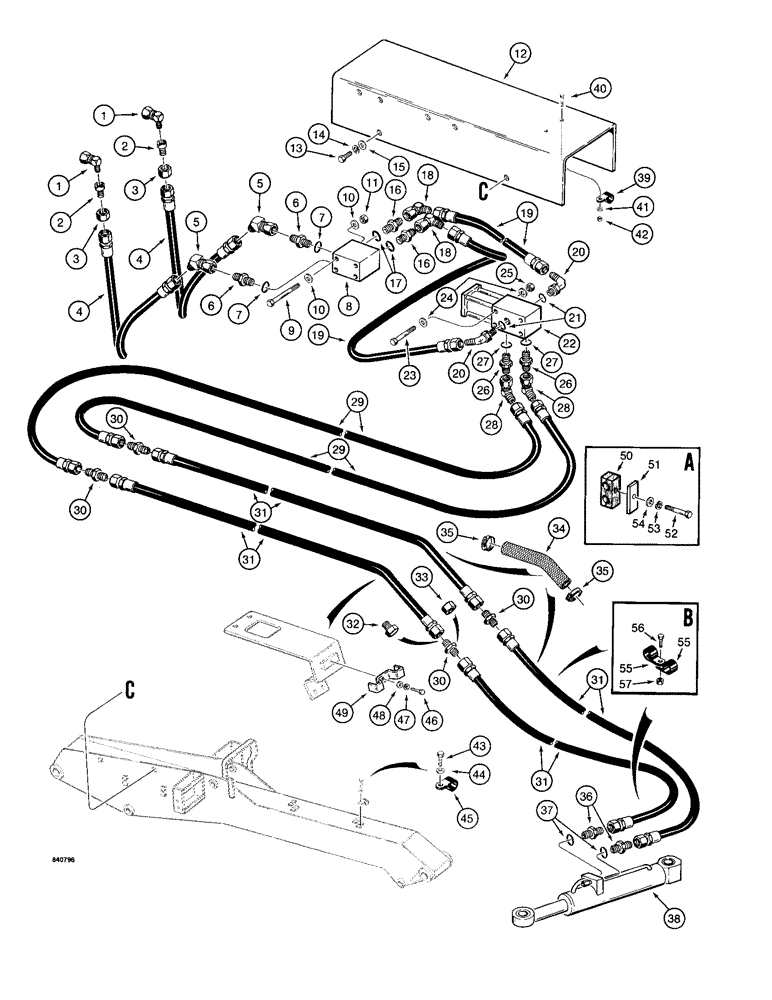

Запчасти Case 1187 (188) - COLLECTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree, at tee for attachment hydraulics, see Figure 182, Ref. no. 7

2шт.

2

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

- hydraulic fitting

2шт.

3

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - reducer fitting

2шт.

4

S400834

HOSE

- to multiple check valve, 36-1/2" (927 mm) long

2шт.

5

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- swivel, 45 degree

2шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

S607153

VALVE

- multiple check, parts list Figure 248

1шт.

9

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex head, 3/8" - 16 NC x 5-1/2"

2шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

12

S616269

BRACKET

- mounting, multiple check and solenoid valves

1шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, hardened, 1/2"

4шт.

16

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 17

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

18

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

19

S11230

HOSE

- to solenoid valve, 28" (711 mm) long

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 21 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

22

S516409

VALVE

- solenoid, collector control, parts list Figure 236

1шт.

23

113-2237

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

2шт.

24

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

25

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

26

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 27 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

28

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

29

S8577

HOSE

- at solenoid valve, 20" (508 mm) long

2шт.

30

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER - male, straight

4шт.

31

S8703

HOSE

- at tool boom and collector cylinder, 116" (2946 mm) long

4шт.

32

218-776

PLUG,7/8"-14, 37 Degree

- hose, use when collector is removed

2шт.

33

218-756

CAP,37 Degree, 7/8"-14

Tube, Use when collector is removed 37º, 7/8"-14

2шт.

34

S120426

TUBE

- hose protector

4шт.

35

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose sleeve, worm screw type

8шт.

36

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 37 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

38

S615490

CYLINDER

- hydraulic, collector arm, parts list Figure 278

1шт.

39

R14668

CLAMP

- hose, at valve bracket

2шт.

40

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

41

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

42

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

43

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

44

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

45

S88820

CLAMP

- hose to tool boom

4шт.

46

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

48

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

49

S79656

CLAMP

- hose, at tool boom bracket

1шт.

50

S217389

CLAMP

- hose, at feller buncher frame

3шт.

51

S83714

SPACER

- clamp

3шт.

52

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

3шт.

53

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

54

195-33

WASHER,1/2"

- flat, 1/2"

3шт.

55

R14668

CLAMP

- hose, at collector frame

4шт.

56

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

57

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
