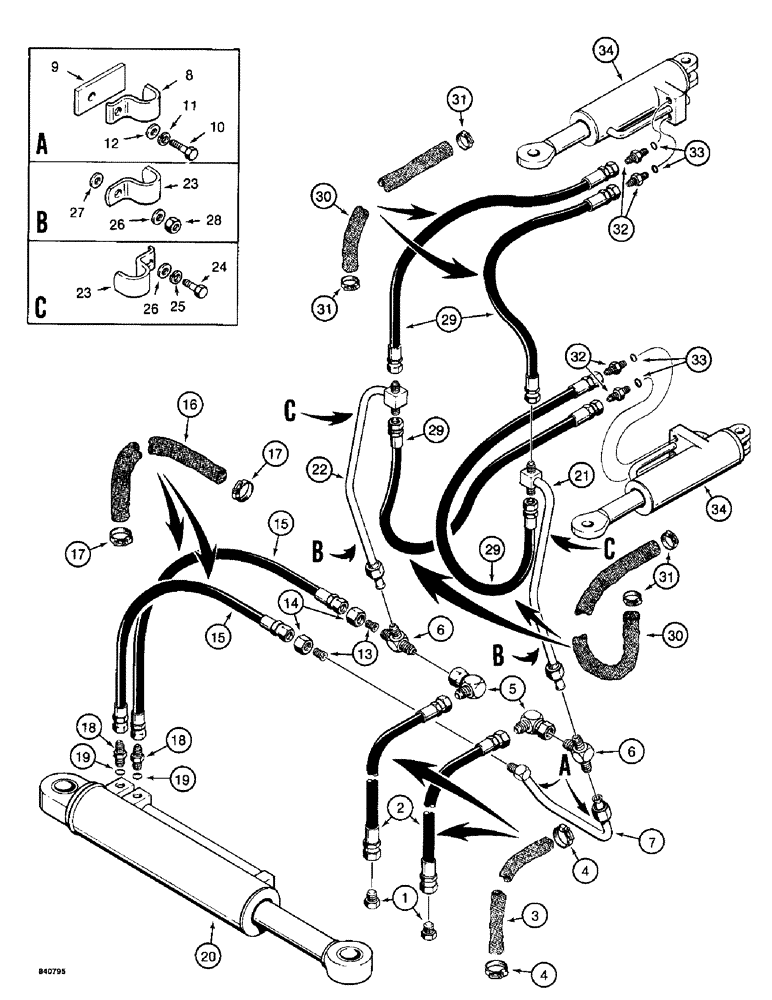

Запчасти Case 1187 (186) - FELLER BUNCHER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-779

PLUG,1 5/16"-12, 37 Degree

Hose, use when feller buncher is removed from logger 1 5/16"-12, 37º

2шт.

2

S233927

HOSE

- tool boom hydraulics to feller buncher, 36" (914 mm) long

2шт.

3

S120425

SLEEVE

- hose protector

2шт.

4

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

sleeve to hose #24, 1.06/2.00 Type F Worm

4шт.

5

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

6

218-598

TEE,1 5/16"-12 37 Degree

- male

2шт.

7

S217848

TUBE ASSY.,1.25" OD

TUBE - crossover, tee to shear cylinder

1шт.

8

S116280

CLAMP

- tube

1шт.

9

S85564

SPACER - clamp

1шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2"

1шт.

13

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

- hydraulic fitting

2шт.

14

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - fitting reducer

2шт.

15

S15468

HOSE

- to shear cylinder, 28" (711 mm) long

2шт.

16

S120427

SLEEVE

- hose protector

2шт.

17

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

sleeve to hose #16, 0.81/1.50 Type F Worm

4шт.

18

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 19

2шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

20

S615305

CYLINDER ASSY.

CYLINDER - hydraulic, shear arm, parts list Figure 274

1шт.

21

S219713

TUBE ASSY.,1.25" OD

TUBE - hydraulic, grab arm, right-hand side of frame

1шт.

22

S219712

TUBE ASSY.,1.25" OD

TUBE - hydraulic, grab arm, left-hand side of frame

1шт.

23

S116280

CLAMP

- tube

4шт.

24

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2"

4шт.

27

196-30

WASHER,11/16" x 1 1/2" x .134", HDN

- flat, use as spacer

2шт.

28

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

29

S8581

HOSE ASSY.

HOSE - tubes to grab cylinders, 48" (1219 mm) long

4шт.

30

S120424

SLEEVE

- hose protector

4шт.

31

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

sleeve to hose #16, 0.81/1.50 Type F Worm

8шт.

32

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 33

4шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

34

S601368

CYLINDER

- hydraulic, grab arm, parts list Figure 276

2шт.
