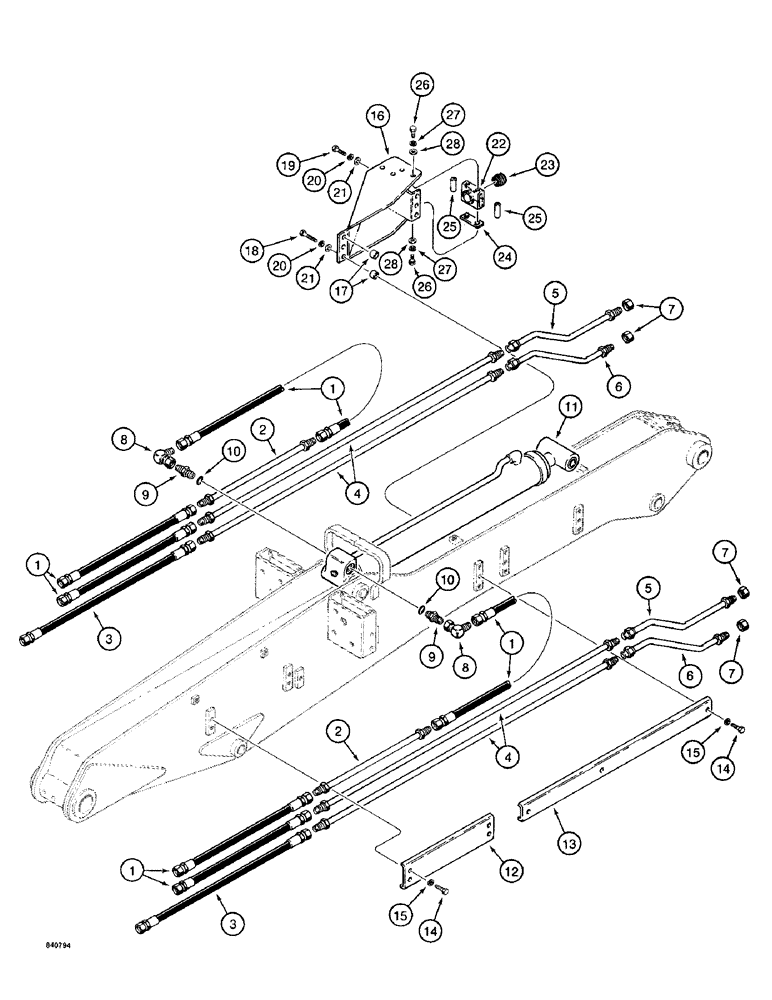

Запчасти Case 1187 (184) - TOOL CYLINDER AND ROTARY CUTTER HYDRAULIC CIRCUITS, TUBES AT ARM (07) - HYDRAULIC SYSTEM

1

S8628

HOSE

- to tool cylinder and upper attachment tubes, 36" (914 mm) long

6шт.

2

S214936

TUBE ASSY.,1.25" OD x 31.04" L

TUBE - to tool cylinder

2шт.

3

S78472

HOSE - to lower attachment tubes, 46" (1168 mm) long

2шт.

4

S229653

TUBE - to attachment, rear section 1.25" OD x 82" L

4шт.

5

S229654

TUBE - to attachment, front section, upper 1.25" OD x 30.5, 5.69" L

2шт.

6

S229655

TUBE - to attachment, front section, lower 1.25" OD

2шт.

7

218-758

CAP,37 Degree, 1 5/16"-12

- tube, used when attachment is removed

4шт.

8

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 10

2шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- seal

1шт.

11

S608077

CYLINDER

- hydraulic, tool, parts list Figure 268

1шт.

12

S229657

CHANNEL

GUARD - tube, short

2шт.

13

S229656

CHANNEL

GUARD - tube, long

2шт.

14

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

14шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

16

S510365

BRACKET

- mounting, tube clamp, front of arm

2шт.

17

L55306

SPACER

-, Serial Range: bracket-arm

4шт.

18

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

6шт.

19

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

21

195-530

WASHER,7/16"

- flat, 1/2"

12шт.

22

S106643

CLAMP

- tube, split type

4шт.

23

S106646

BUSHING

- split, rubber

4шт.

24

S108511

SPACER

-, Serial Range: clamp-bracket

4шт.

25

S106647

TUBE NUT

SPACER - threaded, at split tube clamp

8шт.

26

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

16шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

28

195-104

WASHER,3/8"

- flat, 3/8"

16шт.
