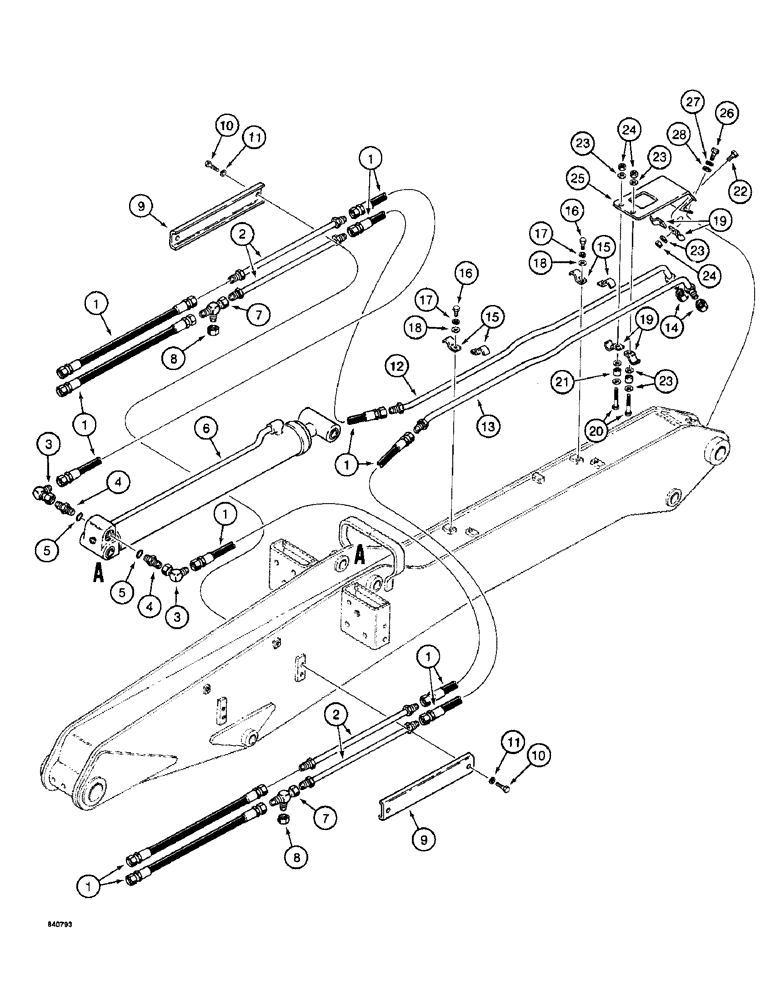

Запчасти Case 1187 (182) - TOOL CYLINDER AND FELLER BUNCHER HYDRAULIC CIRCUITS, TUBES AT ARM (07) - HYDRAULIC SYSTEM

1

S8628

HOSE

- to tool cylinder and attachment tubes, 36" (914 mm) long

8шт.

2

S214936

TUBE ASSY.,1.25" OD x 31.04" L

TUBE - to tool cylinder and attachment tubes

4шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- swivel, 90 degree

2шт.

4

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, Incl. Ref. 5

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- seal

1шт.

6

G107679

CYLINDER

- hydraulic, tool, parts list Figure 270

1шт.

7

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- at attachment tubes

2шт.

8

218-758

CAP,37 Degree, 1 5/16"-12

- tube, used when collector attachment is not installed

2шт.

9

S89414

CHANNEL

GUARD - tube, arm side

2шт.

10

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

S225899

TUBE ASSY.,1.25" OD

TUBE - to attachment, top left-hand of arm

1шт.

13

S225898

TUBE ASSY.,1.25" OD

TUBE - to attachment, top right-hand of arm

1шт.

14

218-758

CAP,37 Degree, 1 5/16"-12

- tube, used when attachment is removed

2шт.

15

S77469

CLAMP

- tube, front and center of attachment tubes

4шт.

16

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

18

195-530

WASHER,7/16"

- flat, 1/2"

4шт.

19

S77469

CLAMP

- tube, attachment tubes to front guard

4шт.

20

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

21

S106334

SPACER,1/2" Pipe x 1"

- tube clamp

2шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

23

195-530

WASHER,7/16"

- flat, 1/2"

8шт.

24

131-70

NUT,1/2"-13, GB

NUT - hex, 1/2" - 13 NC

4шт.

25

S509063

GUARD ASSY.

GUARD - tube, arm front

1шт.

26

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

195-530

WASHER,7/16"

- flat, 1/2"

2шт.
