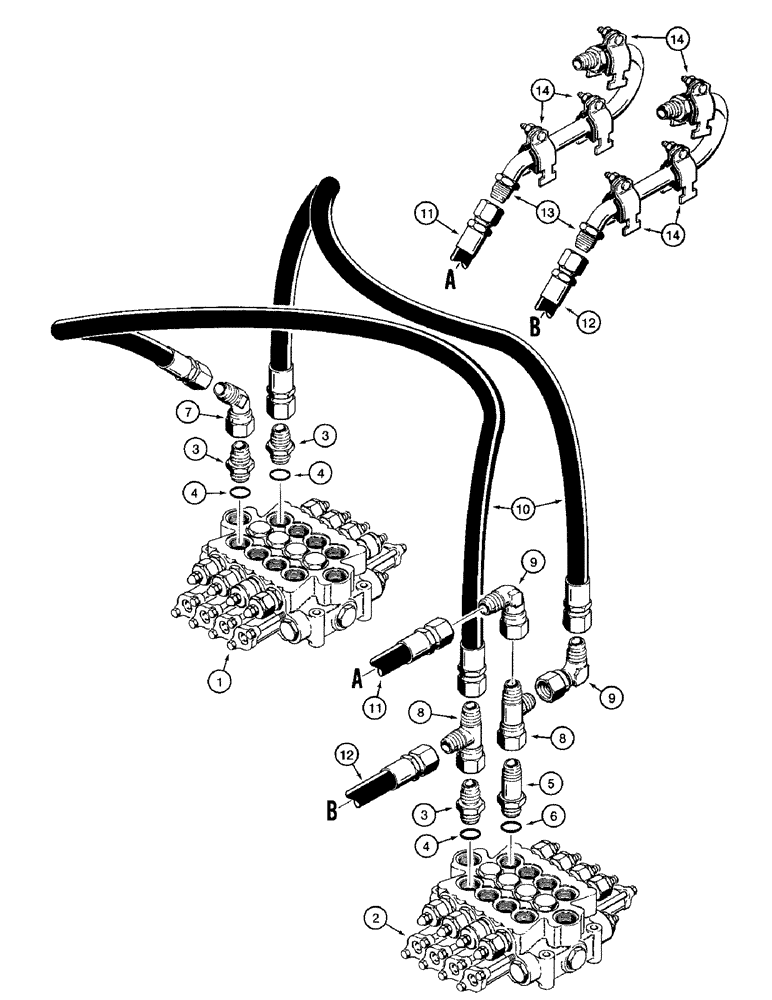

Запчасти Case 1187 (176) - ATTACHMENT CYLINDER CIRCUIT, TUBES FROM CONTROL VALVES AT TURNTABLE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, parts list Figure 222

1шт.

2

REF

INSTRUCTION

CONTROL VALVE - inside, parts list Figure 220

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 4

3шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

5

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, long, Includes: Ref. 6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

7

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, swivel

1шт.

8

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- adapter to hose

2шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, swivel

2шт.

10

S401536

HOSE

- crossover, inside valve to outside valve, 30" (762 mm) long

2шт.

11

S8628

HOSE

- tee to cylinder tube, 36" (914 mm) long

1шт.

12

S235936

HOSE

- tee to cylinder tube, 49" (1245 mm) long

1шт.

13

S242339

TUBE ASSY.,1.25" OD

TUBE - attachment cylinder

2шт.

14

S93266

CLAMP

- tube, at channel on turntable

6шт.
