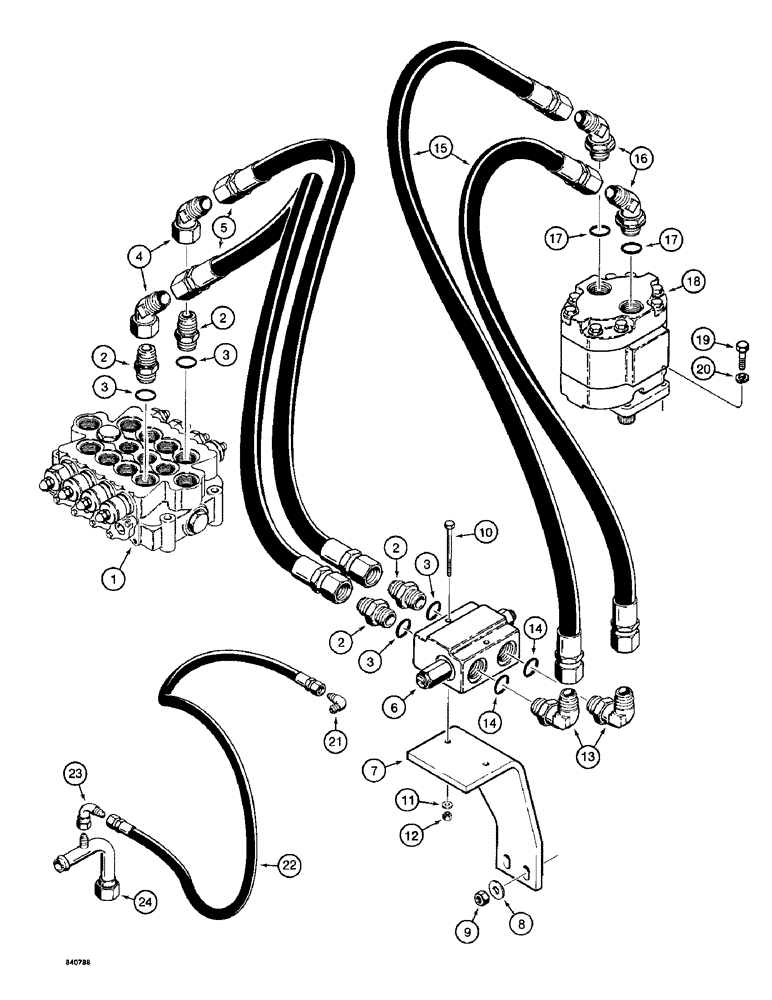

Запчасти Case 1187 (172) - SWING MOTOR HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - inside, parts list Figure 220

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 3

4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- swivel, 45 degree

2шт.

5

S401536

HOSE

- control valve to crossover relief valve, 30" (762 mm) long

2шт.

6

S236820

VALVE

RELIEF VALVE - crossover, swing motor hydraulic circuit, parts list Figure 238

1шт.

7

S516691

BRACKET

- mounting, relief, Serial Range: valve-turntable

1шт.

8

S95569

WASHER

- flat, hardened, 1/2"

2шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, 1/2" - 13 NC

2шт.

10

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex head, 5/16" - 18 NC x 4-1/2"

2шт.

11

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, hardened, 5/16"

2шт.

12

131-462

NUT,5/16"-18

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 14 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

15

S401536

HOSE

- relief valve to swing motor, 30" (762 mm) long

2шт.

16

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degrees, Includes: Ref. 17

2шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

18

S515587

MOTOR, HYDRAULIC

MOTOR - hydraulic, swing, parts list Figure 260

1шт.

19

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, motor drain port

1шт.

22

S241218

HOSE ASSY.

HOSE - motor drain, 36" (914 mm) long

1шт.

23

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, return tube at hydraulic swivel

1шт.

24

S229693

TUBE,1" OD x 3, 3.75" L

- return, no. 1 port of hydraulic swivel

1шт.
