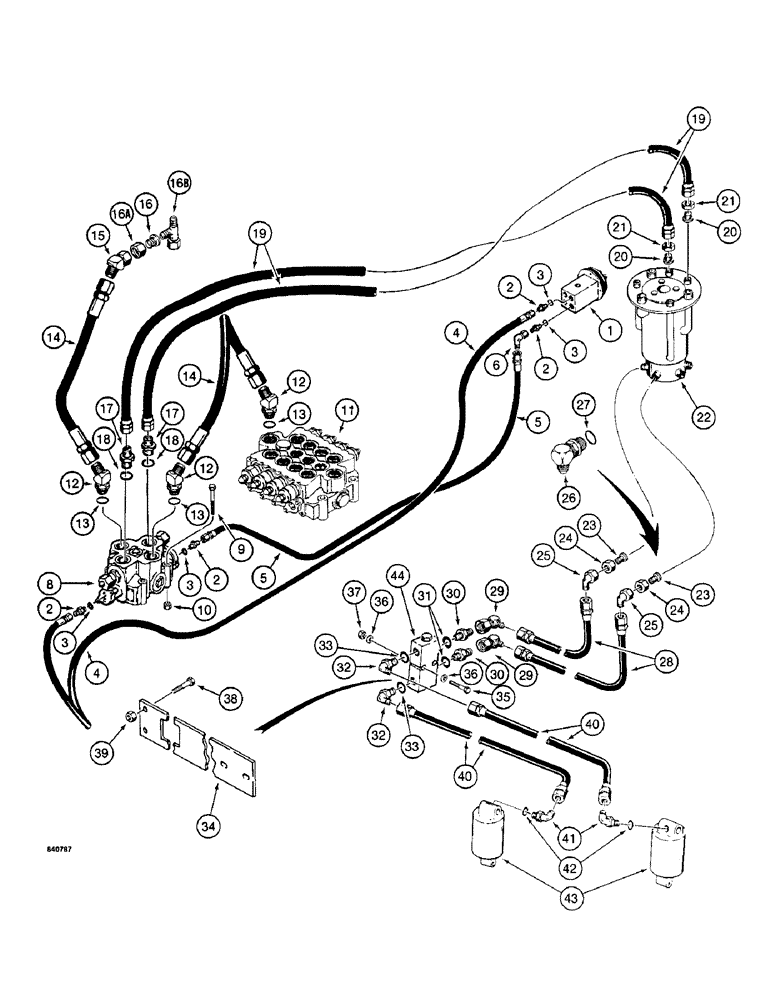

Запчасти Case 1187 (168) - HYDRAULIC LEVELER LINES (07) - HYDRAULIC SYSTEM

1

S516632

VALVE

CONTROL VALVE - right hand lever, parts list Figure 230

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241223

HOSE ASSY.

HOSE - to one spool control valve, 125" (3175 mm) long

1шт.

5

S241222

HOSE ASSY.

HOSE - to one spool control valve, 100" (2540 mm) long

1шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel

1шт.

8

REF

INSTRUCTION

CONTROL VALVE - leveler, see Figure 224 for parts list

1шт.

9

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

3шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, 1/2" - 13 NC

3шт.

11

REF

INSTRUCTION

CONTROL VALVE - outside, parts list Figure 222

1шт.

12

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degrees, Includes: Ref. 13

3шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

14

S8628

HOSE

- outside control valve to leveler control valve and leveler control valve to return line, 36" (914 mm) long

2шт.

15

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- swivel, 45 degrees

1шт.

16

218-788

REDUCER,37º, 1 1/4" x 1" Tube

- hydraulic fitting

1шт.

16a

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - reducer fitting

1шт.

16b

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- swivel, at low pressure tube

1шт.

17

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - valve ports, Includes: Ref. 18

2шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

19

S11231

HOSE ASSY.

HOSE - leveler control valve to swivel, 68" (1727 mm) long

2шт.

20

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - hose to swivel

2шт.

21

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter

2шт.

22

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 262

1шт.

23

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - swivel to elbow, if used, swivel with spuds

2шт.

24

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter, if used, swivel with spuds

2шт.

25

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, if used, swivel with spuds

2шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, if used, swivel without spuds, Includes: Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

28

S11226

HOSE

- to check valve, 20" (508 mm) long

2шт.

29

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel

2шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight male, Incl. Ref 31

2шт.

32

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Check valve ports, Includes: Ref. 33 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

34

S119046

BAR

BRACKET - check valve mounting

1шт.

35

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/2"

2шт.

36

195-102

WASHER,1/4"

- flat, 1/4"

4шт.

37

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

38

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

39

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

40

S11226

HOSE

- to leveler cylinders, 20" (508 mm) long

2шт.

41

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

At leveler cylinders, Includes: Ref. 42 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

43

S611706

CYLINDER

- leveler, parts list Figure 272

2шт.

44

S516156

CHECK VALVE

- leveler, parts list Figure 244

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
