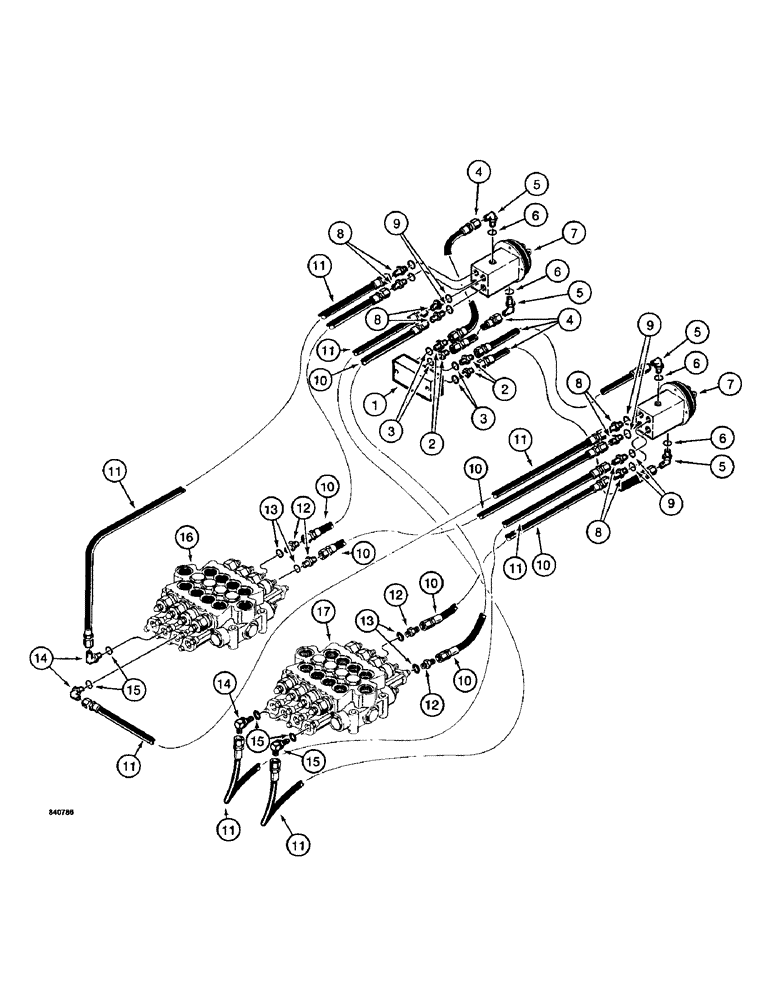

Запчасти Case 1187 (166) - HYDRAULIC CIRCUIT FOR CONTROLS, FOOT PEDAL CONTROL VALVE LINES (07) - HYDRAULIC SYSTEM

1

S236862

BLOCK

MANIFOLD - control circuits, see Figure 164 for manifold lines and attaching hardware

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold ports, Incl. Ref. 3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241217

HOSE ASSY.

HOSE - to foot pedal control valves, 21" (533 mm) long

4шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at foot pedal control valves, Includes: Ref. 6

4шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

S513193

VALVE

CONTROL VALVE - foot pedal, parts list Figure 230

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 9

8шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

S241221

HOSE ASSY.

HOSE - from left and right foot pedal control valves to inside and outside control valves, 80" (2032 mm) long

4шт.

11

S241222

HOSE ASSY.

HOSE - from left foot pedal valve to inside control valve and right foot pedal valve to outside control valve, 100" (2540 mm) long

4шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, inside and outside control valves, Incl. Ref. 13

4шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, inside and outside control valves, Includes: Ref. 15

4шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

16

REF

INSTRUCTION

CONTROL VALVE - outside, parts list Figure 222

1шт.

17

REF

INSTRUCTION

CONTROL VALVE - inside, parts list Figure 220

1шт.
