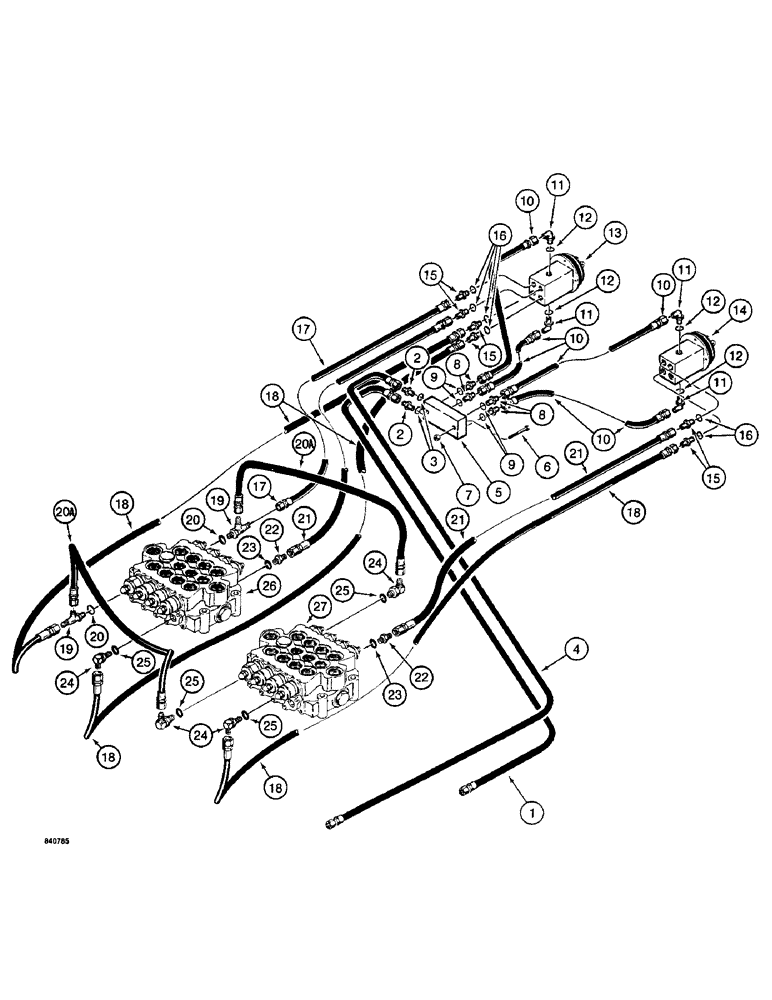

Запчасти Case 1187 (164) - HYDRAULIC CIRCUIT FOR CONTROLS, MANIFOLD AND HAND LEVER CONTROL VALVE LINES (07) - HYDRAULIC SYSTEM

1

S241220

HOSE ASSY.

HOSE - from solenoid control valve to manifold, 70" (1778 mm) long, see Figure 162 for, Serial Range: connections-valve

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold inlet and outlet, Incl. Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241222

HOSE ASSY.

HOSE - manifold return, 100" (2540 mm) long

1шт.

5

S236862

BLOCK

MANIFOLD - control circuits

1шт.

6

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold ports, Incl. Ref. 9

4шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

S241217

HOSE ASSY.

HOSE - to hand lever control valves, 21" (533 mm) long

4шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at hand lever control valves, Includes: Ref. 12

4шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

13

S516631

VALVE

CONTROL VALVE - hand lever, left-hand, parts list Figure 230

1шт.

14

S516632

VALVE

CONTROL VALVE - hand lever, right-hand, parts list Figure 230

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 16

6шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

17

S241220

HOSE ASSY.

HOSE - to outside control valve, 70" (1778 mm) long

1шт.

18

S241222

HOSE ASSY.

HOSE - to outside and inside control valves, 100" (2540 mm) long

3шт.

19

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, Includes: Ref. 20

2шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

20a

S241217

HOSE ASSY.

HOSE - crossover, inside to outside control valve, 21" (533 mm) long

2шт.

21

S241221

HOSE ASSY.

HOSE - to outside and inside control valves, 80" (2032 mm) long

2шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, outside and inside control valves, Incl. Ref. 23

2шт.

23

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, inside and outside control valves, Includes: Ref. 25

4шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

26

REF

INSTRUCTION

CONTROL VALVE - outside, parts list Figure 222

1шт.

27

REF

INSTRUCTION

CONTROL VALVE - inside, parts list Figure 220

1шт.
