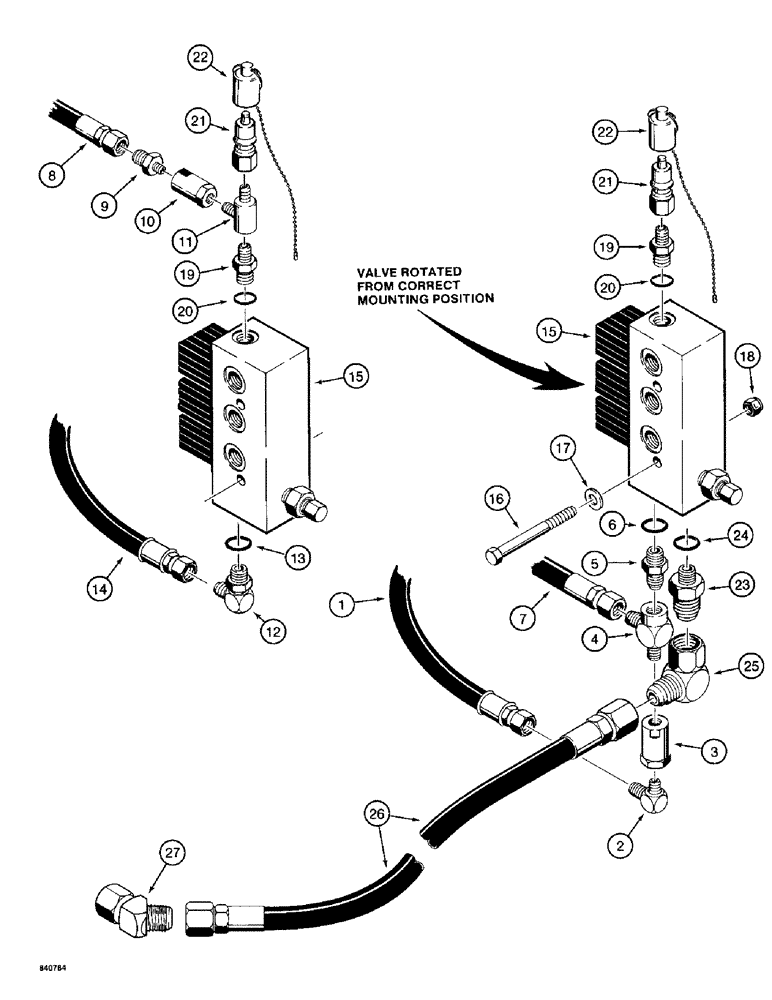

Запчасти Case 1187 (162) - HYDRAULIC CIRCUIT FOR CONTROLS, SOLENOID CONTROL VALVE CONNECTING LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

HOSE - from charging pump, see Figures 158 and 160 for hydraulic pump and connecting lines, parts used when screen filter is used in charge pump line

1шт.

2

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degree, hose to screen, parts used when screen filter is used in charge pump line

1шт.

3

S98004

FILTER

SCREEN - solenoid control valve protection, parts used when screen filter is used in charge pump line

1шт.

4

S114909

TEE

- special, screen to hose, parts used when screen filter is used in charge pump line

1шт.

5

218-5443

FITTING

ADAPTER - at bottom port, parts used when screen filter is used in charge pump line, Includes: Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter, parts used when screen filter is used in charge pump line

1шт.

7

S241220

HOSE ASSY.

HOSE - manifold block to tee, 70" (1778 mm) long, parts used when screen filter is used in charge pump line

1шт.

8

REF

INSTRUCTION

HOSE - from pump, see Figures 158 and 160 for hydraulic pump and connecting lines, parts used when filter with replaceable element is used in charge pump line

1шт.

9

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, parts used when filter with replaceable element is used in charge pump line

1шт.

10

S242548

FILTER ASSY

FILTER - solenoid control valve, 25 micron, includes replaceable element N9426, parts used when filter wilth replaceable element is used in charge pump line

1шт.

11

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- filter and male disconnect to valve, parts used when filter with replaceable element is used in charge pump line

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, male, parts used when filter with replaceable element is used in charge pump line, Includes: Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow, parts used when filter with replaceable element is used in charge pump line

1шт.

14

S241220

HOSE ASSY.

HOSE - manifold block to elbow, 70" (1778 mm) long, parts used when filter with replaceable element is used in charge pump line

1шт.

15

S516559

VALVE

SOLENOID CONTROL VALVE - parts list Figure 232, parts used with both screen filter and filter with replaceable element

1шт.

16

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Parts used with both screen filter and filter with replaceable element Hex, 5/16"-18 x 3", G5

2шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16", parts used with both screen filter and filter with replaceable element

2шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, parts used with both screen filter and filter with replaceable element

2шт.

19

218-5443

FITTING

ADAPTER - top port, parts used with both screen filter and filter with replaceable element, Includes: Ref. 20

1шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter, parts used with both screen filter and filter with replaceable element

1шт.

21

S206607

DISC

QUICK DISCONNECT - male, test, parts used with both screen filter and filter with replaceable element

1шт.

22

S206608

CAP

- dust, with chain, parts used with both screen filter and filter with replaceable element

1шт.

23

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - at bottom port, parts used with both screen filter and filter with replaceable element, Includes: Ref. 24

1шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter, parts used with both screen filter and filter with replaceable element

1шт.

25

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Parts used with both screen filter and filter with replaceable element 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

26

S8581

HOSE ASSY.

HOSE - to tube tee in return manifold, 48" (1219 mm) long, parts used with both screen filter and filter with replaceable element

1шт.

27

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- swivel, 45 degree, to return manifold at reservoir, parts used with both screen filter and filter with replaceable element

1шт.
