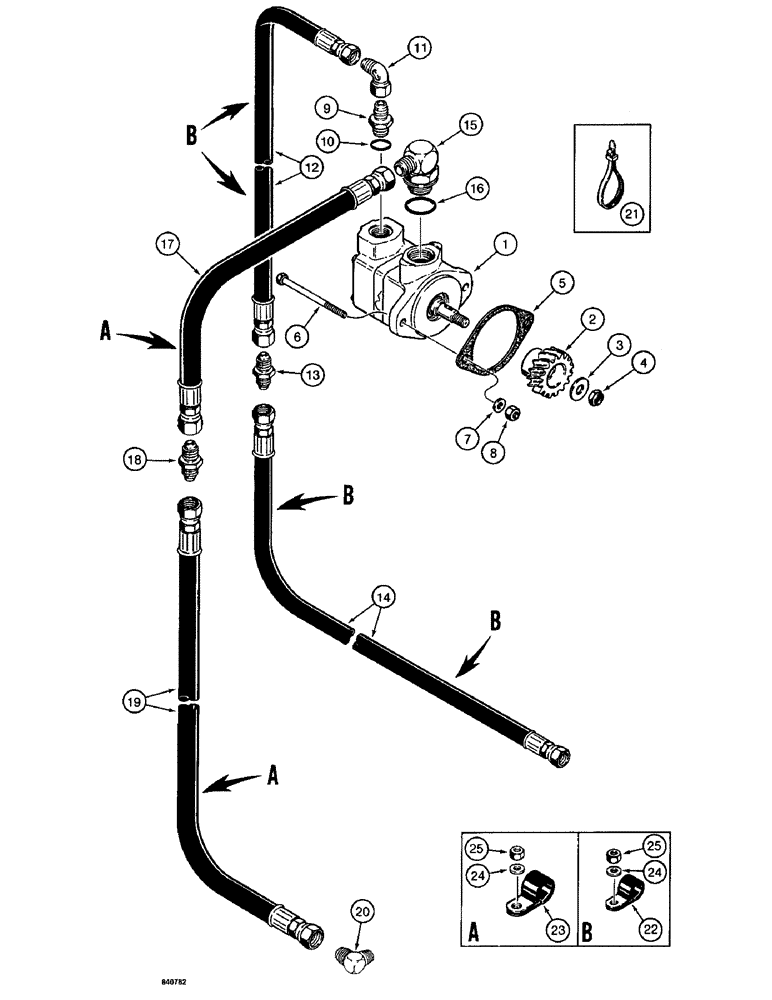

Запчасти Case 1187 (158) - HYDRAULIC CIRCUIT FOR CONTROLS, HYDRAULIC PUMP AND LINES - CASE ENGINE (07) - HYDRAULIC SYSTEM

1

S516451

PUMP

- hydraulic, parts list Figure 214

1шт.

2

L43703

GEAR

- pump drive shaft

1шт.

3

195-530

WASHER,7/16"

- flat, 1/2"

1шт.

4

131-58

LOCK NUT,1/2"-20, G5

NUT - hex, self-locking, 1/2" - 20 NF, special

1шт.

5

S108814

GASKET

-, Serial Range: pump-engine

1шт.

6

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

7

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, pump outlet port, Includes: Ref. 10

1шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel

1шт.

12

S11229

HOSE ASSY.

HOSE - to solenoid control valve, at pump, 49" (1245 mm) long

1шт.

13

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER - straight

1шт.

14

S61247

HOSE

- to solenoid control valve, 60" (1524 mm) long, see Figure 162 for connecting parts at valve

1шт.

15

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

adjustable, at pump inlet port, Incl. Ref 16 90º, 7/8"-14, 37º x 1 5/16"-12, O-Ring

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

17

S8578

HOSE

- from cooler line, at pump, 26" (660 mm) long

1шт.

18

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight

1шт.

19

S8582

HOSE ASSY.

HOSE - from cooler line, at oil cooler, 60" (1524 mm) long

1шт.

20

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose, 3/4" ID

4шт.

23

R14668

CLAMP

- hose, 1" ID

2шт.

24

195-104

WASHER,3/8"

- flat, 3/8"

1шт.

25

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, at mounting studs

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
